194 results

Pyrometric Cone Equivalent (PCE) Refractoriness Test Furnace

Refractory TestingNHD-II-17

Pyrometric Cone Equivalent (PCE) Refractoriness Test Furnace

The NHD-II-17 test furnace determines the pyrometric cone equivalent (refractoriness) of refractory materials by heating test cones in a box furnace with molybdenum disilicide (MoSi₂) heating elements and observing them as they bend, to GB/T 7322-2017 and ISO 528. It offers rated temperatures of 1,650 °C, 1,700 °C or 1,800 °C for refractories, refractory raw materials and other nonmetallic products.

High-Temperature Specific Heat Capacity Tester

Specific Heat CapacityGHC-II

High-Temperature Specific Heat Capacity Tester

The GHC-II determines the specific heat capacity of solid materials at set temperatures by the method of mixtures, with computer acquisition of the specimen and calorimeter temperature changes. It covers room temperature to 1,400 °C for specific-heat-capacity testing of solid materials in research and teaching laboratories.

Longitudinal Heat-Flow Thermal Conductivity Apparatus for Graphite and Carbon Materials

Thermal Conductivity & DiffusivityDRX-II-JH

Longitudinal Heat-Flow Thermal Conductivity Apparatus for Graphite and Carbon Materials

The DRX-II-JH longitudinal heat-flow apparatus measures the thermal conductivity of electrically conductive materials at elevated temperature by the longitudinal heat-flow method with direct electrical heating, passing current through the specimen. It covers room temperature to 1,000 °C and 0.035–40 W/(m·K) or 20–500 W/(m·K) depending on the specimen's electrical conductivity, for graphite and carbon materials, copper, stainless steel and other conductive metals.

Glazed Ceramic Tile Surface Abrasion Tester

Ceramic & Tile TestingLM-2/4/8

Glazed Ceramic Tile Surface Abrasion Tester

LM-2/4/8 determines the surface abrasion resistance of glazed ceramic tiles by grinding an abrasive charge on the glaze and classifying the abraded surface by visual comparison, to ISO/DIS 10545-7 and GB/T 3810.7-2016. It abrades 2 to 8 specimens of 100 × 100 mm at once at a rated 300 rpm, for glazed tile manufacturers, national quality inspection bodies and research institutes.

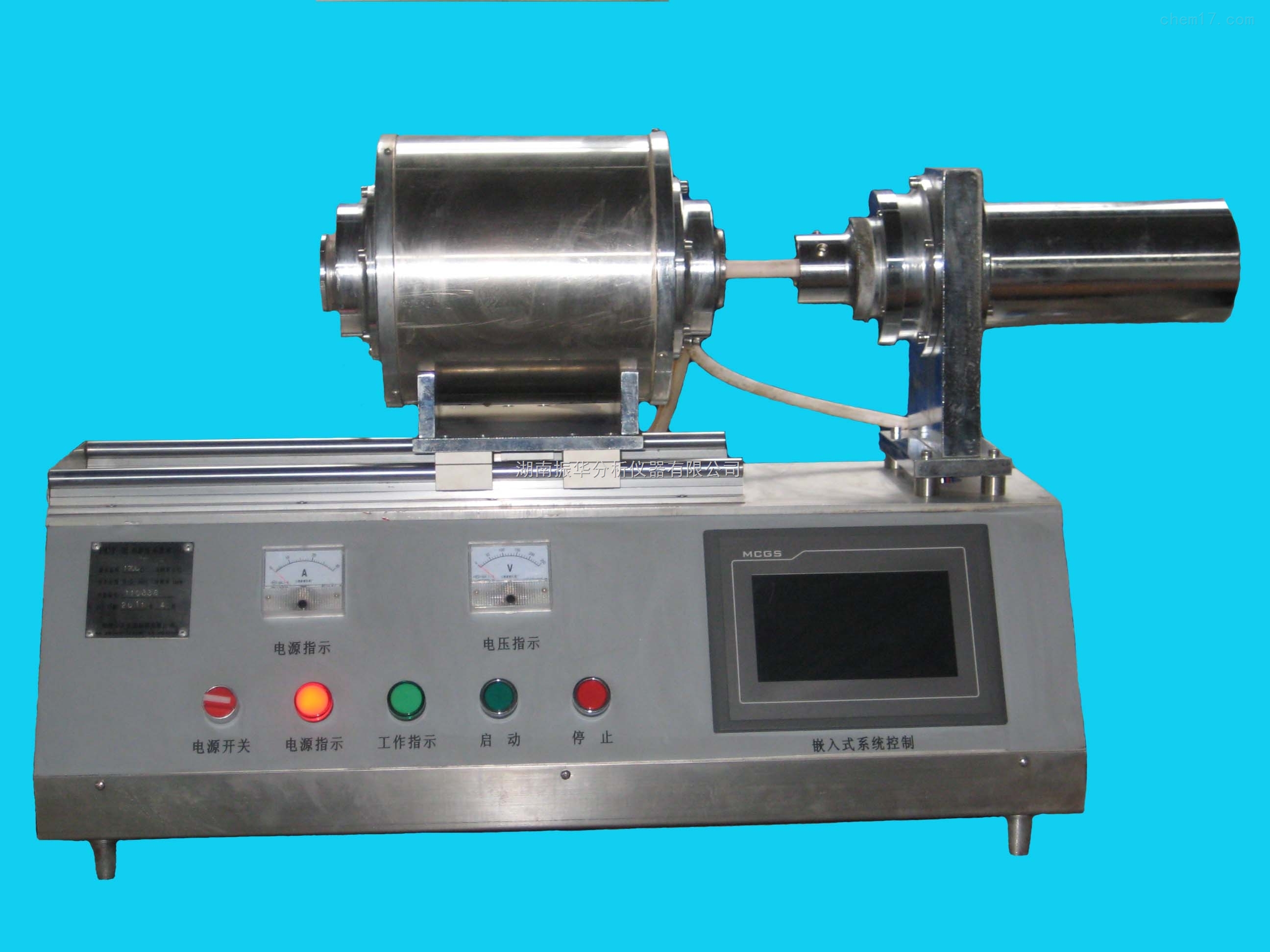

Horizontal Push-Rod Dilatometer

Dilatometry & Thermal ExpansionDIL0809PC

Horizontal Push-Rod Dilatometer

DIL0809PC is a horizontal push-rod dilatometer that measures the dimensional change of a specimen as a function of temperature or time under a programmed temperature profile and near-zero load. Furnace options reach 1,000 °C, 1,400 °C or 1,600 °C from room temperature, for ceramics, metals, polymers and refractories.

Pipe Insulation Thermal Conductivity Apparatus (Guarded Hot Pipe)

Thermal Conductivity & DiffusivityGHR-3K

Pipe Insulation Thermal Conductivity Apparatus (Guarded Hot Pipe)

The GHR-3K guarded hot pipe apparatus determines the steady-state heat transfer properties of pipe insulation, including thermal conductivity, by the guarded hot pipe method, heating a 200 mm metering section between two 150 mm guard sections, with reference to GB 10296-2008 and ISO/DIS 8497. It covers 0.001–2.5 W/(m·K) on pipe specimens of 41–89 mm inner diameter with 20–50 mm walls, for polymeric pipe insulation, rock wool, glass wool and other insulation pipe sections.

Powder Electrical Resistivity Meter

Electrical TestingDCY3F

Powder Electrical Resistivity Meter

DCY3F measures the electrical resistivity of coke and other carbon powders by passing a direct current through a compressed powder column and calculating resistivity from the column's voltage drop and height. It covers 1–1,800 μΩ·m under loads up to 3,000 N in 20 mm and 30 mm powder cylinders, citing ISO 10143-1995 and YS/T 587.6.

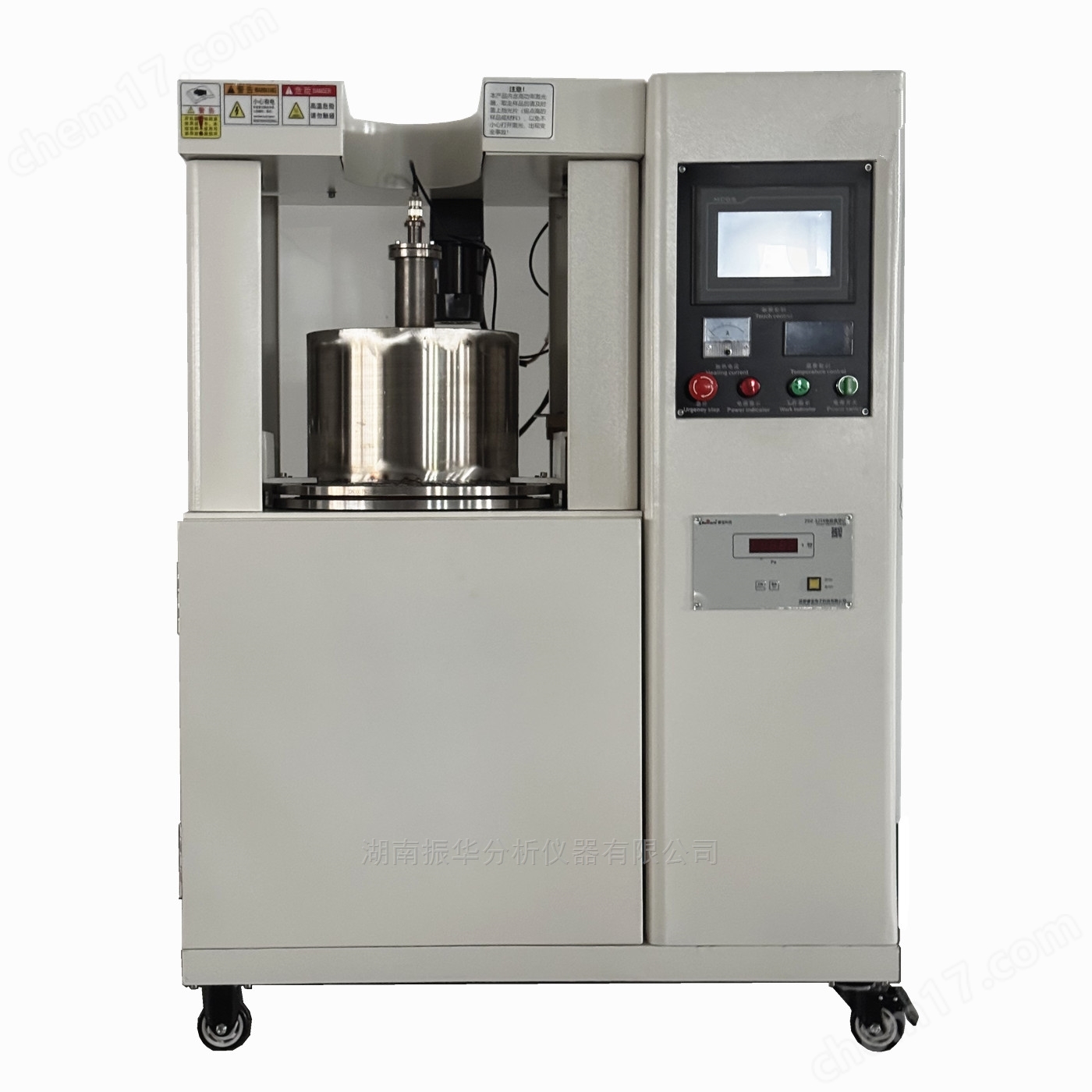

Laser Flash Analyzer (LFA)

Thermal Conductivity & DiffusivityDRX-II-JG1200

Laser Flash Analyzer (LFA)

DRX-II-JG1200 is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. Furnace options reach 500 °C or 1,200 °C from room temperature for Ø12–20 mm specimens 0.1–10 mm thick, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

Laser Flash Analyzer (LFA)

Thermal Conductivity & DiffusivityDRX-II-JG

Laser Flash Analyzer (LFA)

DRX-II-JG is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. It covers thermal diffusivities of 0.01–1,000 mm²/s on specimens 1–10 mm thick, loading 1, 3 or 6 at a time, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

Laser Flash Analyzer (LFA)

Thermal Conductivity & DiffusivityDRX-II-JG20

Laser Flash Analyzer (LFA)

DRX-II-JG20 is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. Furnace options span −100 °C to 1,600 °C with a 20-position autosampler, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

Thermal Conductivity & DiffusivityDRH-30S

Heat Flow Meter (HFM)

DRH-30S is a heat flow meter that measures the thermal conductivity and thermal resistance of homogeneous plate specimens held between a hot plate and a cold plate, with automatic loading and thickness measurement for tests at different pressures. It covers 0.015–5 W/(m·K) in its low range and 3–500 W/(m·K) in its high range, for insulation materials, plastics and rubber, glass and fibers, and building insulation coatings.

Flat-Plate Heat Flow Meter

Thermal Conductivity & DiffusivityDRH-30S

Flat-Plate Heat Flow Meter

DRH-30S is a heat flow meter that measures the thermal conductivity and thermal resistance of homogeneous plate specimens held between a hot plate and a cold plate, with automatic loading and thickness measurement for tests at different pressures. It covers 0.015–5 W/(m·K) in its low range and 3–500 W/(m·K) in its high range, for insulation materials, plastics and rubber, glass and fibers, and building insulation coatings.

Ceramic Apparent Porosity Vacuum Apparatus

Ceramic & Tile TestingXQK

Ceramic Apparent Porosity Vacuum Apparatus

XQK is a vacuum apparatus for determining the apparent porosity and water absorption of ceramics, built around a Ø300 × 300 mm vacuum vessel evacuated below 2,500 Pa by a water-circulating vacuum pump. It suits testing to GB/T 3810.3-2016, GB/T 2997-2000 and GB/T 2413-1981, covering ceramic tiles and sanitary ceramics, dense shaped refractories and piezoelectric ceramics.

RZL Thermal Shock Resistance Test Furnace

Thermal ShockRZL-14

RZL Thermal Shock Resistance Test Furnace

The RZL-14 thermal shock test furnace determines the thermal shock resistance of refractory products by moving specimens between a 1,350 °C furnace and compressed-air or water quenching, built to the equipment requirements of YB/T 376.1 and meeting YB/T 2206.1-1998. It takes three standard bricks per test and runs 0–100 automatic cycles, for refractory products, ceramics, glass and graphite.

High-Temperature Optical Contact Angle Analyzer

Contact Angle & Surface TensionGFT-II-16

High-Temperature Optical Contact Angle Analyzer

The GFT-II-16 optical contact angle analyzer measures the wetting behavior and contact angle of materials at elevated temperature by transmission projection, imaging a specimen as it is heated, melted and dropped onto a substrate under vacuum or protective atmosphere. It covers room temperature to 1,700 °C, with continuous use below 1,600 °C, for metals, inorganic compounds and their mixtures through sintering, softening, melting and liquefaction.

Steel-Wheel Abrasion Tester

Mechanical TestingWM-II

Steel-Wheel Abrasion Tester

WM-II is a steel-wheel abrasion tester that determines the abrasion resistance of brittle materials by grinding a specimen with a rotating friction steel wheel fed with abrasive. It runs a 200 mm wheel at 75 ±4 r/min on 100 × 150 mm specimens of unglazed tiles and mosaics, cement paving bricks, natural stone and composite panels.

Ceramic Tile Linear Moisture Expansion Apparatus

Ceramic & Tile TestingSPY

Ceramic Tile Linear Moisture Expansion Apparatus

SPY determines the moisture expansion of ceramic tiles to GB/T 3810.10-2006 with a firing furnace and a boiling device. Its furnace reaches 800 °C and its boiling vessel measures Ø225 × 210 mm, for in-process quality testing of ceramic tiles and ceramic products in factory inspection departments.

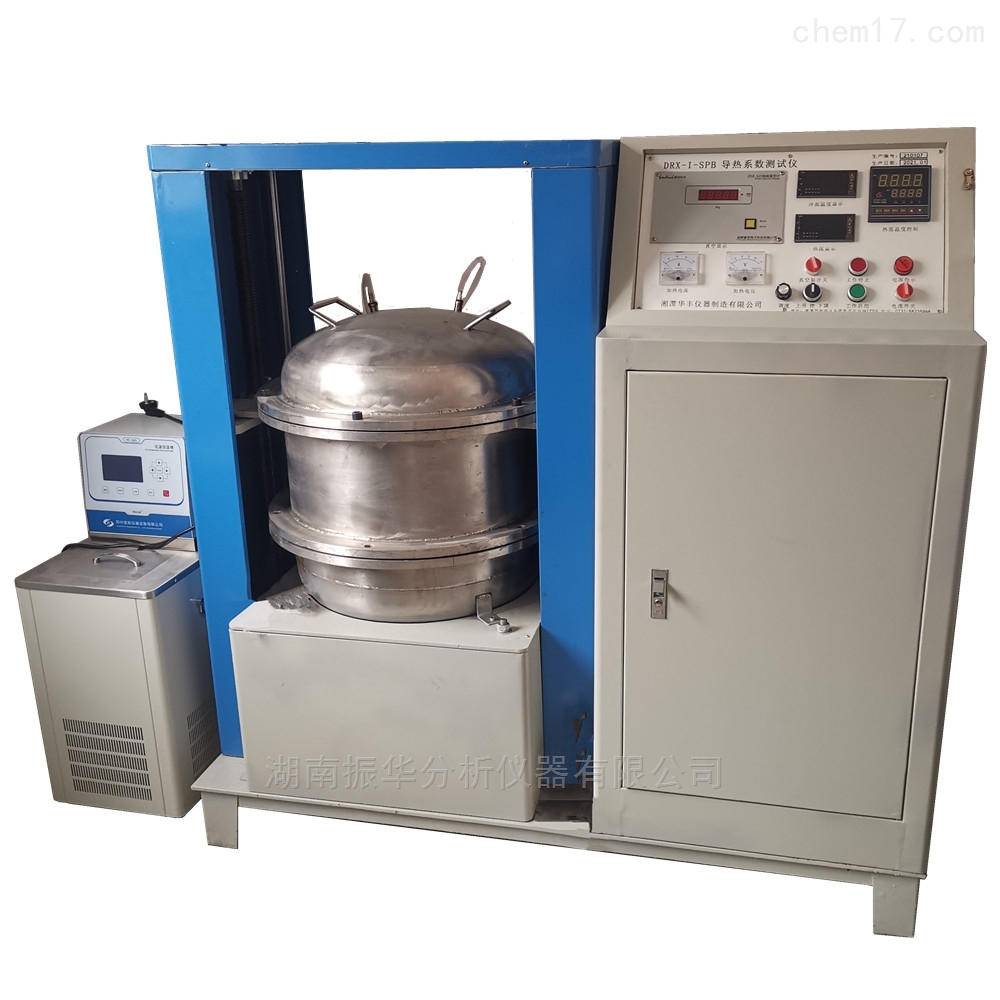

DRX-I-SPB High-Temperature Thermal Conductivity Tester

Thermal Conductivity & DiffusivityDRX-I-SPB

DRX-I-SPB High-Temperature Thermal Conductivity Tester

DRX-I-SPB is a high-temperature thermal-conductivity tester for refractory and ceramic-fiber products. It supports configured specimen assemblies with computer-assisted measurement and report output.

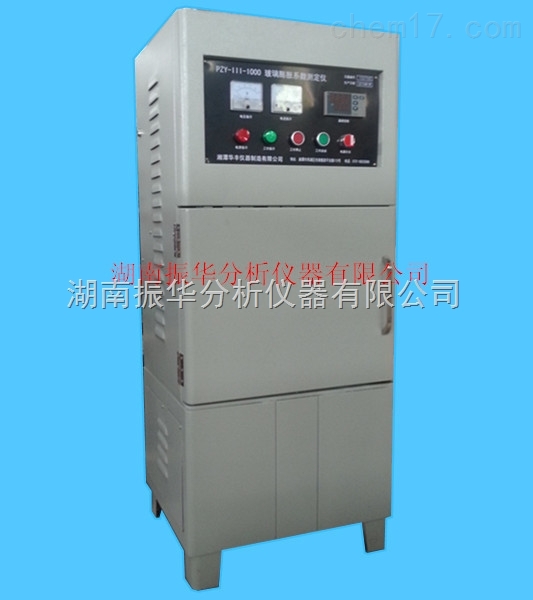

Vertical Dual-Specimen Dilatometer

Dilatometry & Thermal ExpansionPZY-III-1000

Vertical Dual-Specimen Dilatometer

The PZY-III vertical dual-specimen dilatometer measures expansion and contraction and determines the linear coefficient of thermal expansion (CTE) for ceramics, glass, alloys, nonmetallic materials, graphite, carbon materials, rubber, plastics, and composites. It operates at furnace temperatures up to 1,000 °C with reference to ASTM D3386, DIN 51045, GB/T 32158-2015, GB/T 3074.4, and YBB 00202003-2015.

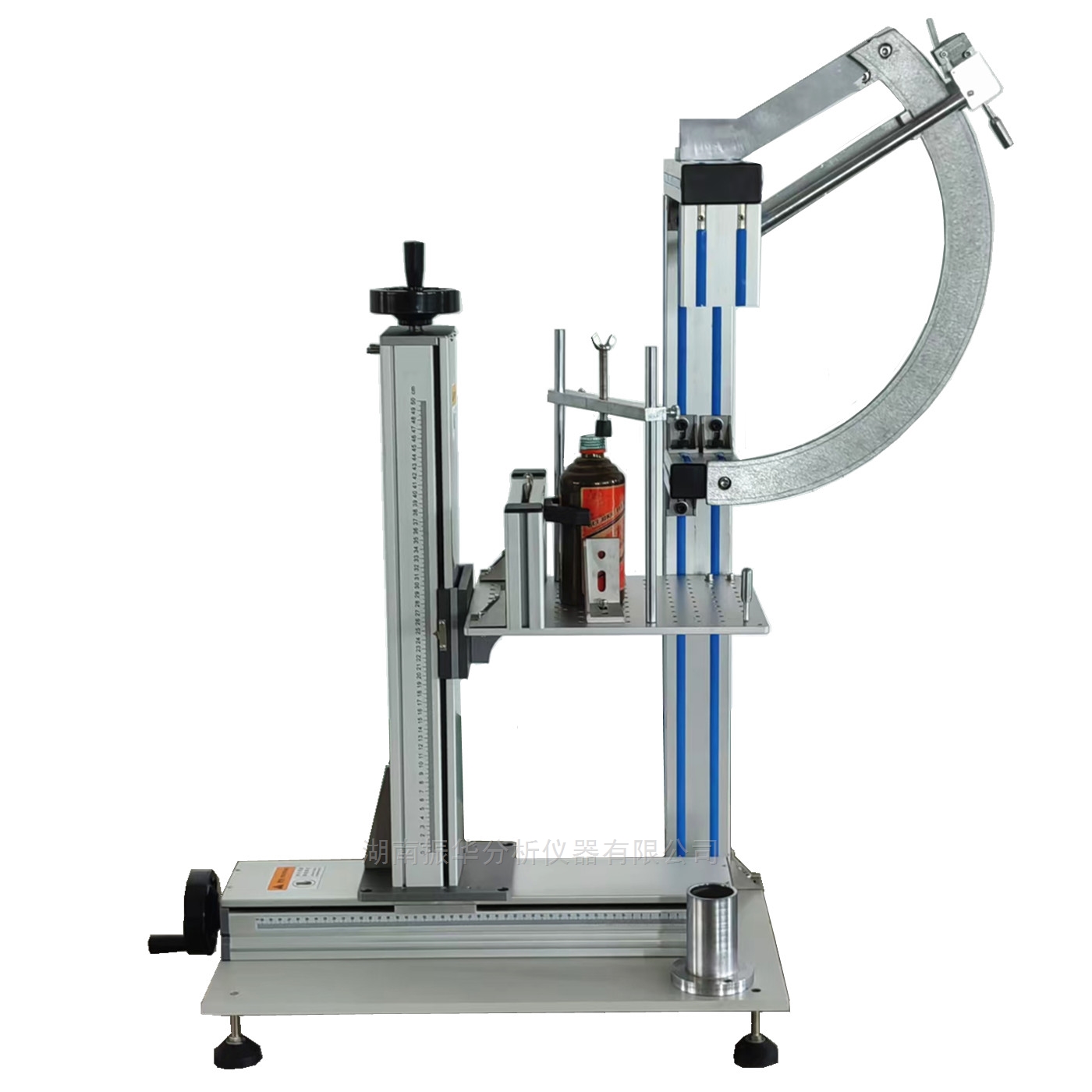

Pendulum Impact Tester for Ceramic Ware

Mechanical TestingJB-30

Pendulum Impact Tester for Ceramic Ware

The JB-30 measures impact energy for initial cracking and complete fracture in flat tableware and concave ceramic ware, and tests edge fracture of glazed or unglazed flat ware. It references GB/T 4742, QB/T 1993-2012, ASTM C368, and GB/T 38494-2020.

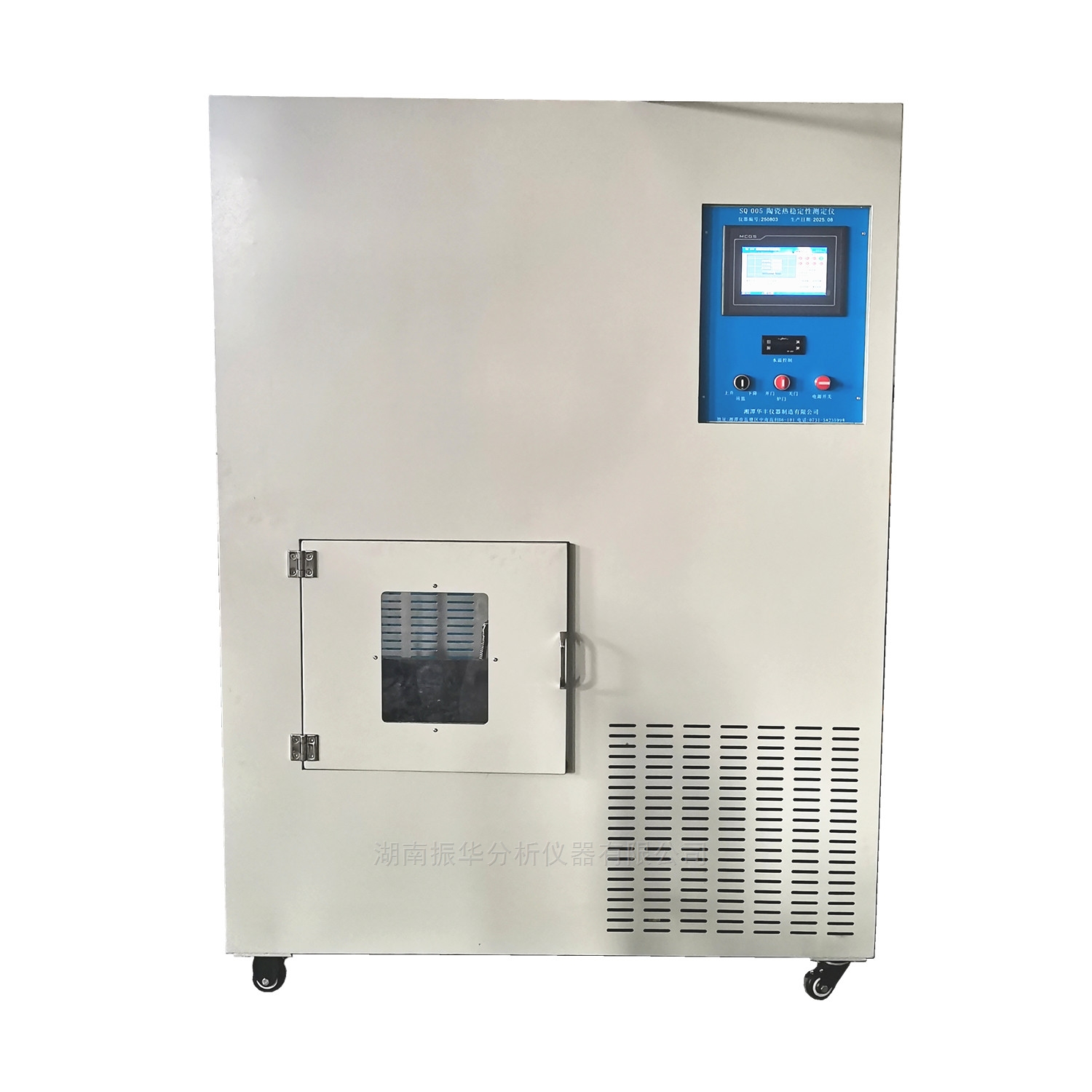

Thermal Shock and Stability Tester

Thermal ShockSQ005

Thermal Shock and Stability Tester

SQ005 subjects ceramic products to 600 °C thermal-shock and stability cycles to programmed heating, cooling, and thermal-shock cycles. It is also used for glass, graphite, silicate products, and other nonmetallic materials.

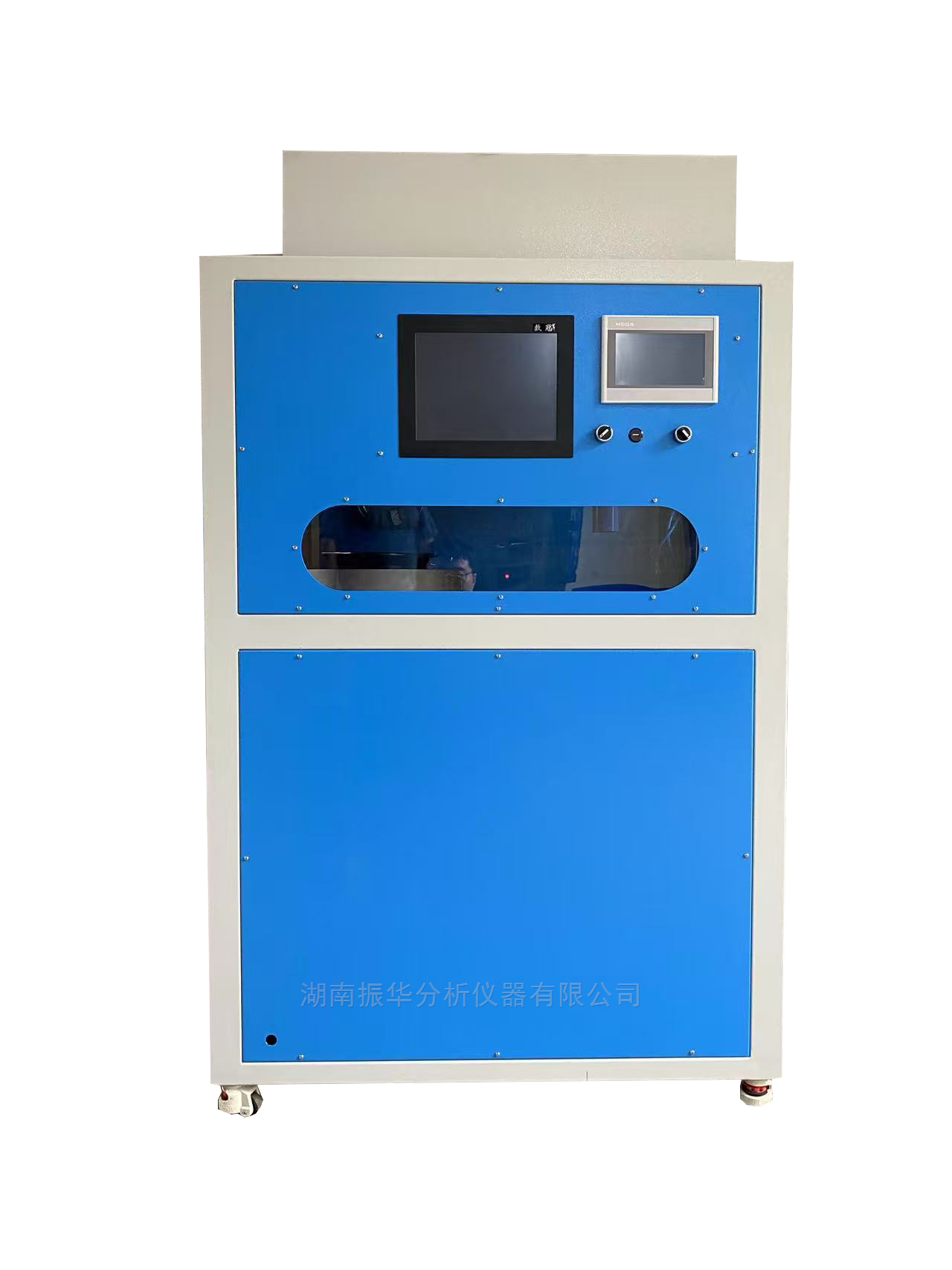

Ceramic Cooker Thermal Shock Resistance Tester

Thermal ShockSQ006P

Ceramic Cooker Thermal Shock Resistance Tester

The SQ006P Ceramic Cooker Thermal Shock Resistance Tester monitors the full bottom temperature of ceramic cookware with a point-tracking infrared imager during thermal-shock testing. It provides automatic heating, cooling, temperature control, and specimen feeding for ceramic-cooker tests.

Domestic Ceramic Ware Impact Tester

Mechanical TestingJB-30

Domestic Ceramic Ware Impact Tester

The instrument measures impact energy for initial cracking and complete fracture in flat tableware and concave ceramic ware, and tests edge fracture of glazed or unglazed flat ware. It references GB/T 4742, QB/T 1993-2012, ASTM C368, and GB/T 38494-2020.

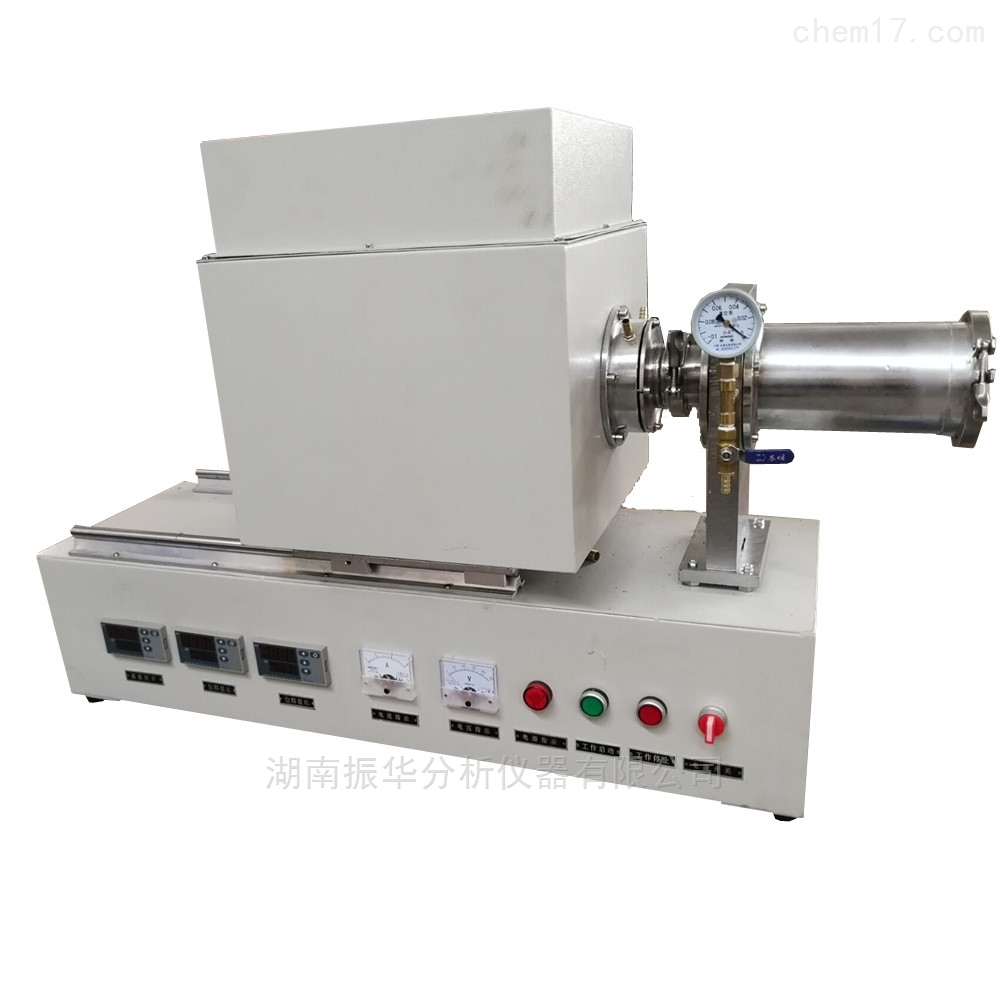

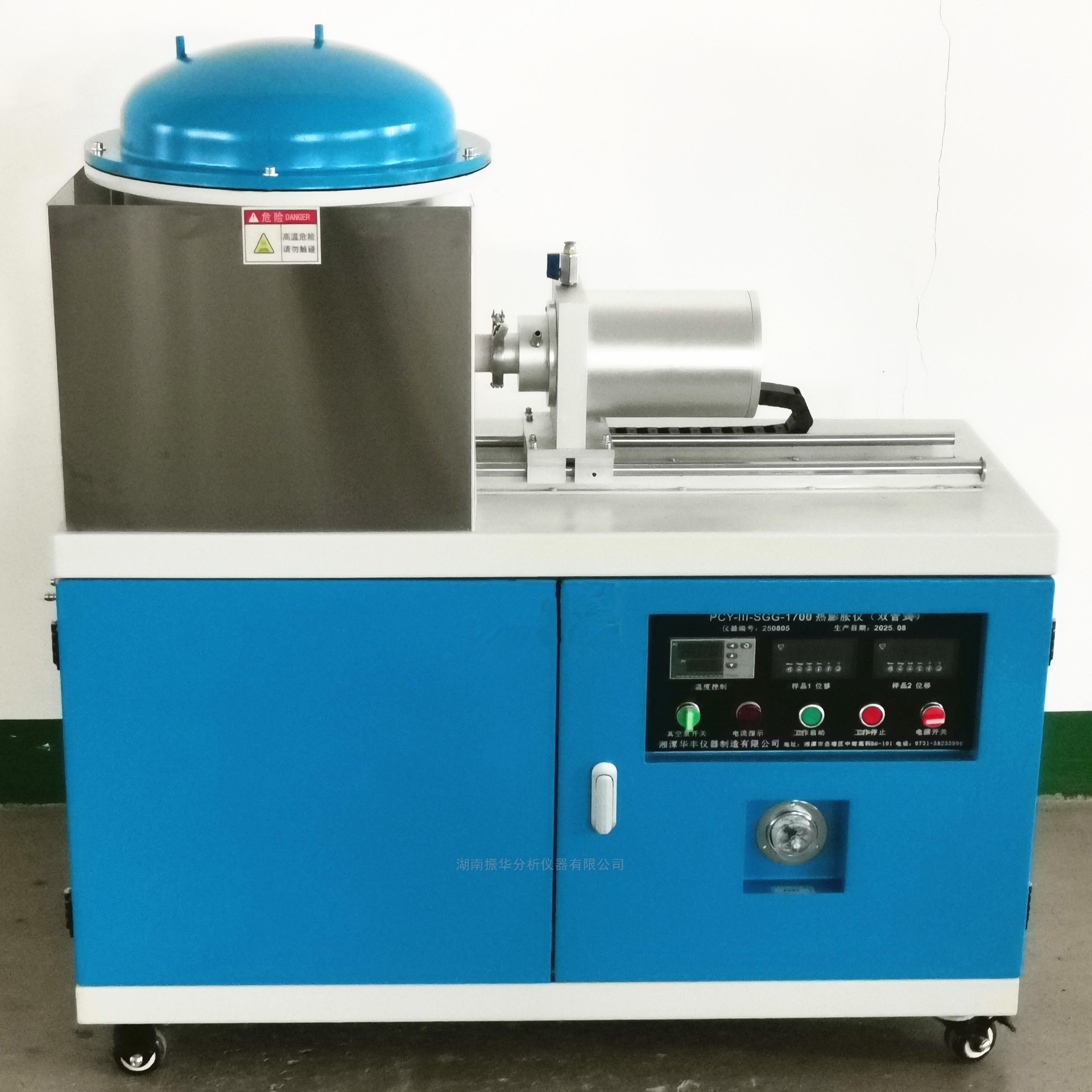

Horizontal Dual Push Rod Thermal Expansion Coefficient Tester

Dilatometry & Thermal ExpansionPCY-III-SG-1000/1400/1700

Horizontal Dual Push Rod Thermal Expansion Coefficient Tester

The PCY-III-SG series Horizontal Dual Push-Rod Thermal Expansion Tester measures thermal expansion by the expansion method with displacement and temperature monitoring. It is used for refractory materials, ceramics, glass, graphite, polymers, and metal alloys in factory testing, research, and teaching.

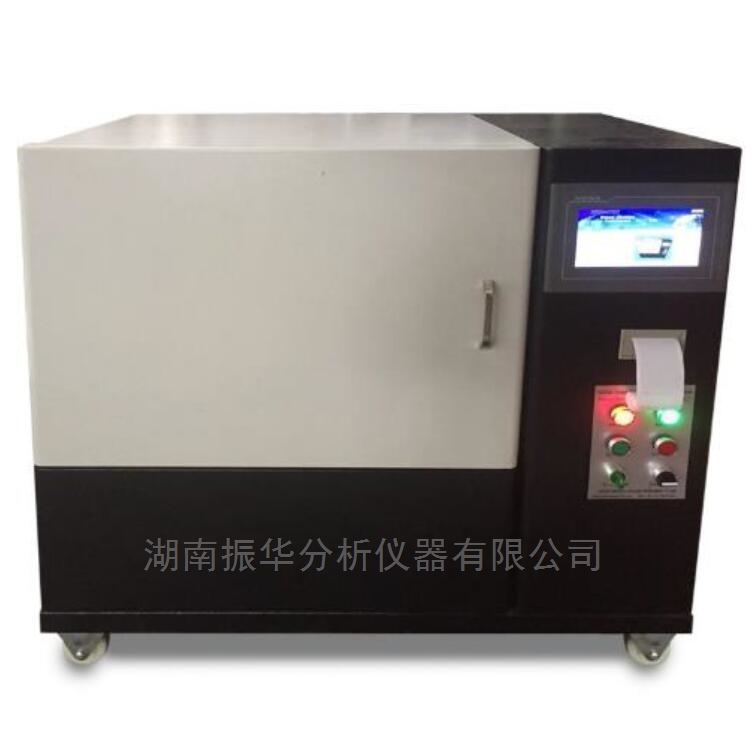

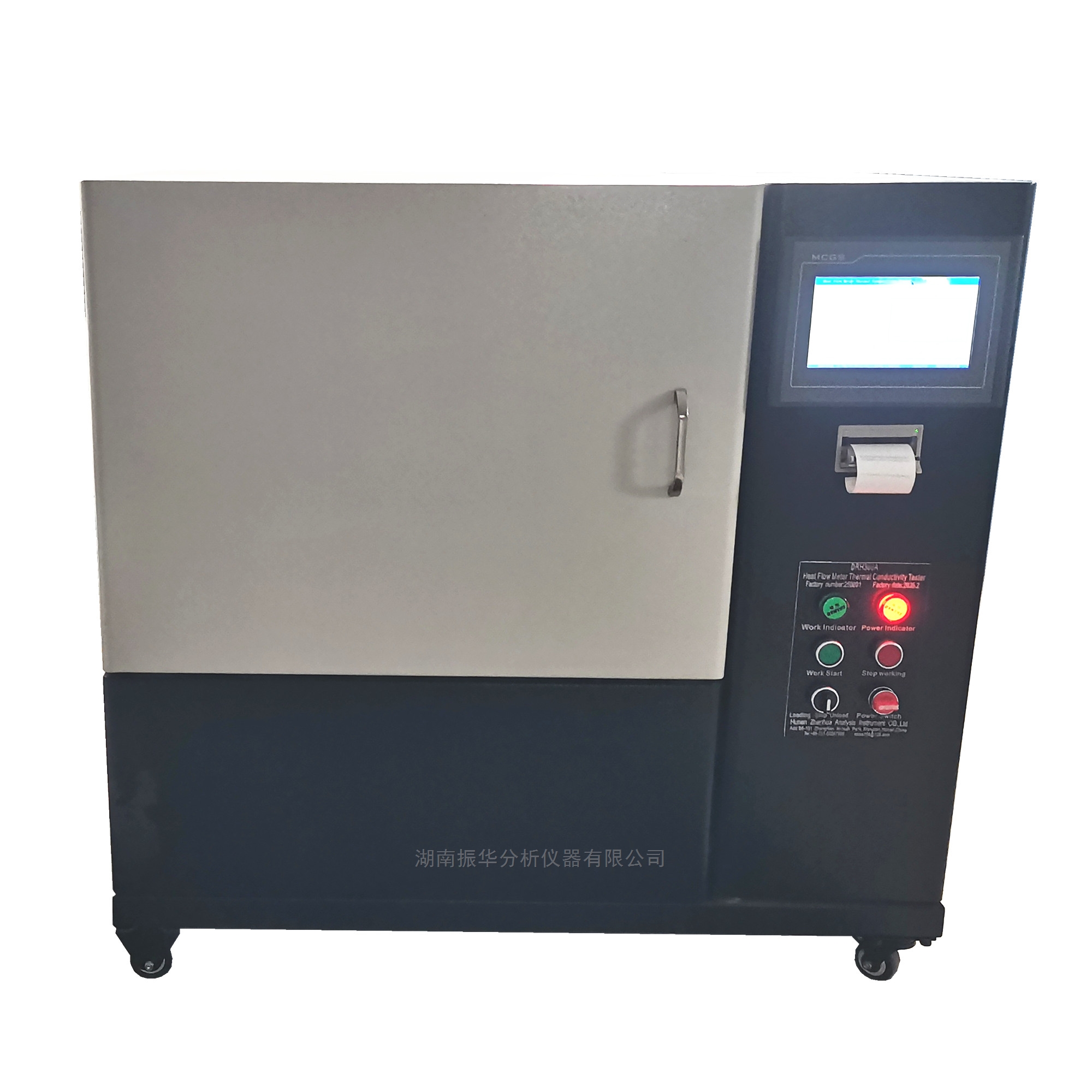

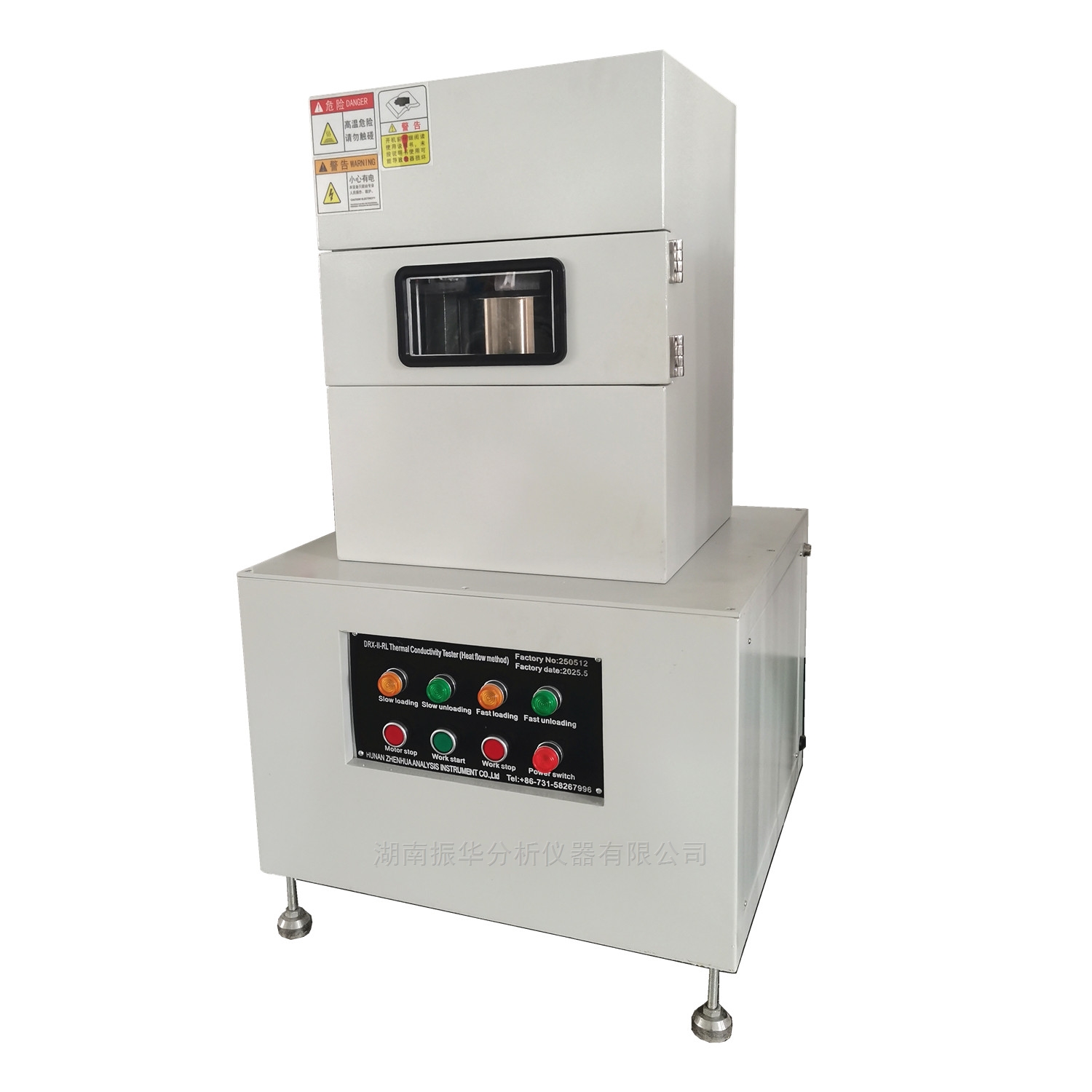

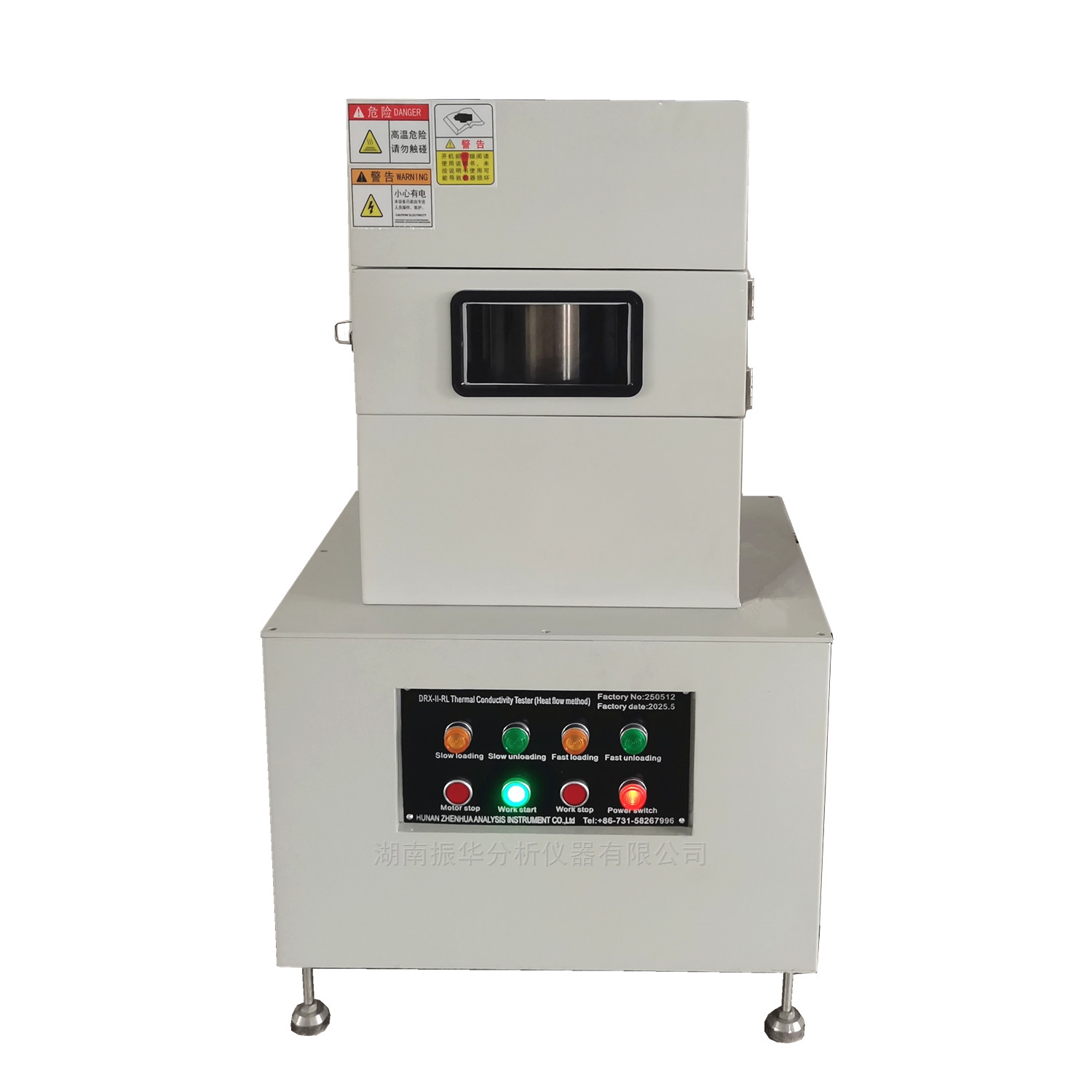

Heat Flow Meter Thermal Conductivity Analyzer

Thermal Conductivity & DiffusivityDRX-II-RL

Heat Flow Meter Thermal Conductivity Analyzer

The instrument uses the heat flow meter method to measure thermal conductivity, with separate thermal-resistance and thermal-contact-resistance test modes. It accepts small specimens of polymers, ceramics, insulation, composites, glass, rubber, and other low- to medium-conductivity materials, including multilayer films.

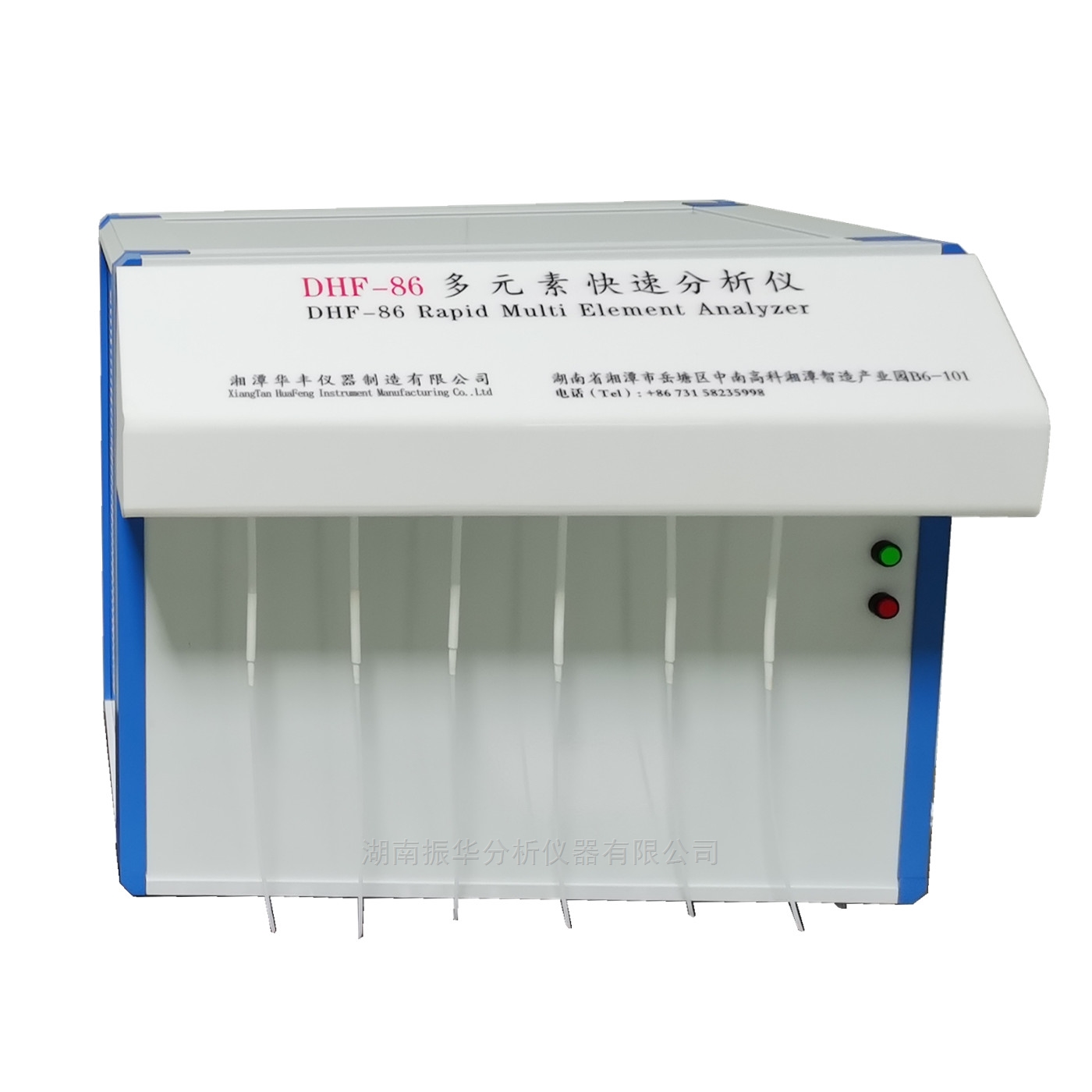

Rapid Multi-Element Analyzer

Rapid Multi-Element Analyzer

The DHF86 Rapid Multi-Element Analyzer uses photometric analysis and linearity optimization within the Beer–Lambert range to analyze silicate chemical composition. It measures the conventional eight oxide analytes in ceramic raw materials and samples from ceramics, refractories, cement, glass, geology, and nonmetallic-mineral work.

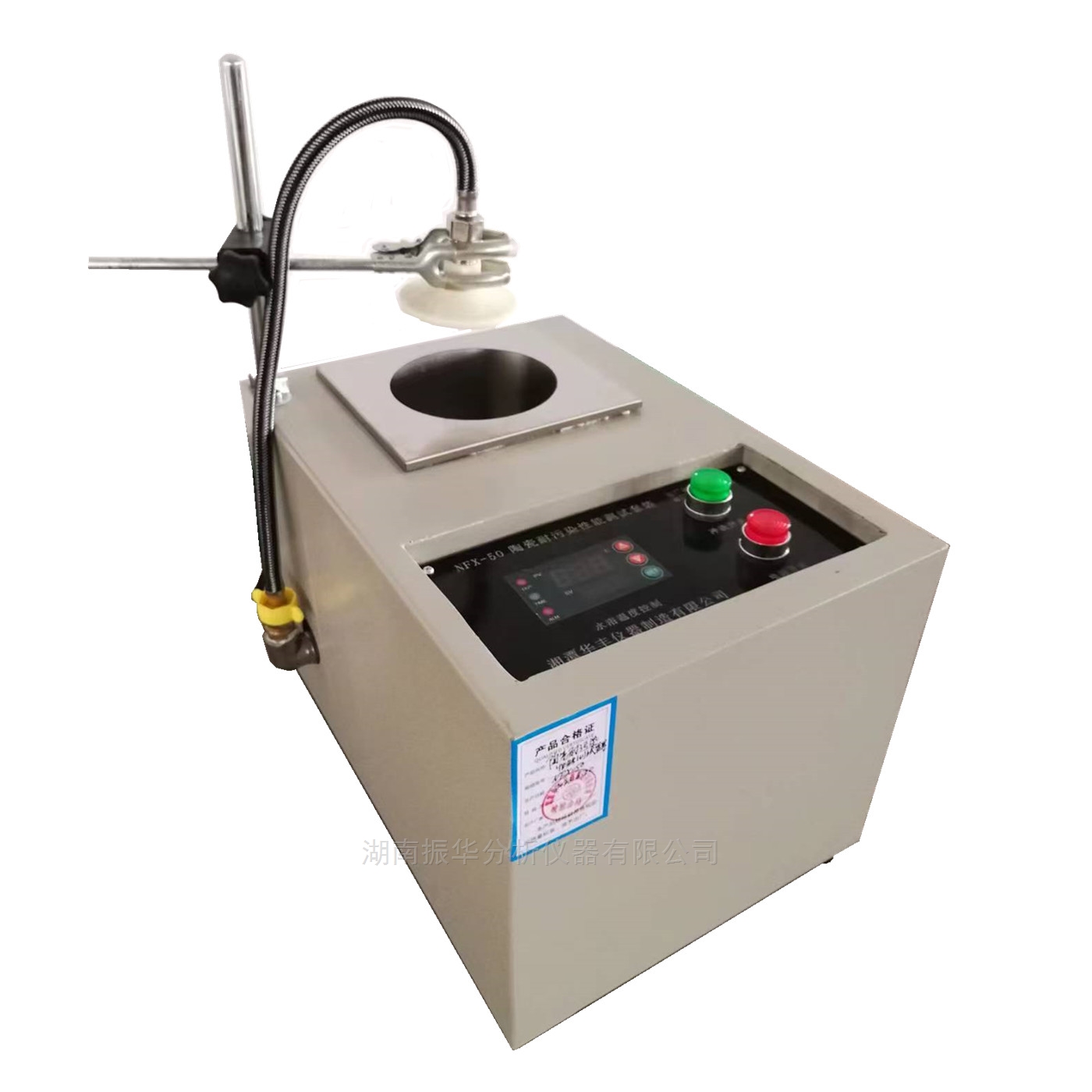

Ceramic Tile Stain Resistance Tester

Ceramic & Tile TestingNFX-50

Ceramic Tile Stain Resistance Tester

The instrument determines ceramic-tile stain resistance by exposing the tile surface to a staining solution for a specified time, cleaning it as prescribed, and observing visible changes. It is used by national quality-inspection departments and ceramic-tile manufacturers under GB/T 3810.14-2016 and ISO 10545-14.

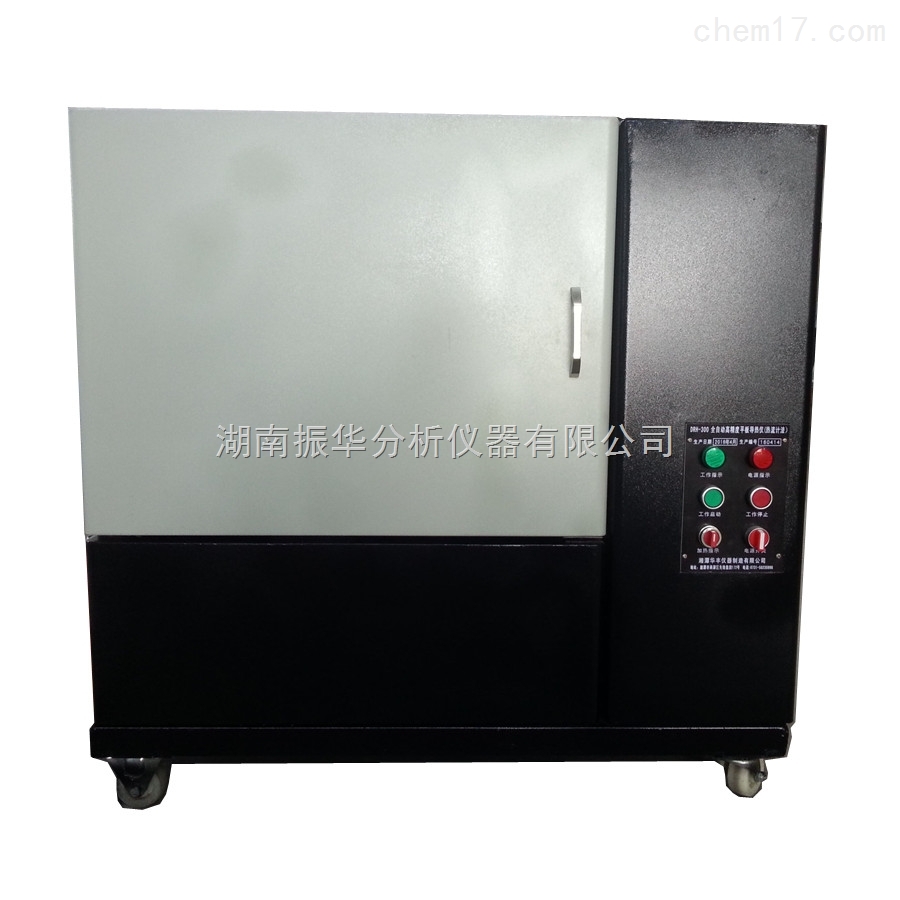

DRH300 Thermal Conductivity Analyzer

Thermal Conductivity & DiffusivityDRH300

DRH300 Thermal Conductivity Analyzer

DRH300 is a thermal-conductivity analyzer for insulation materials, construction materials, fillers, powders, gypsum board, fiberboard, and rubber. DRH300A, DRH300B, and DRH300C configurations provide steady-state heat-flow-meter or guarded-hot-plate measurement.

DRH300 Thermal Conductivity Analyzer

Thermal Conductivity & DiffusivityDRH300

DRH300 Thermal Conductivity Analyzer

DRH300 is a thermal-conductivity analyzer for solid and board-shaped materials. It provides configured temperature control, data acquisition, analysis, and reporting.

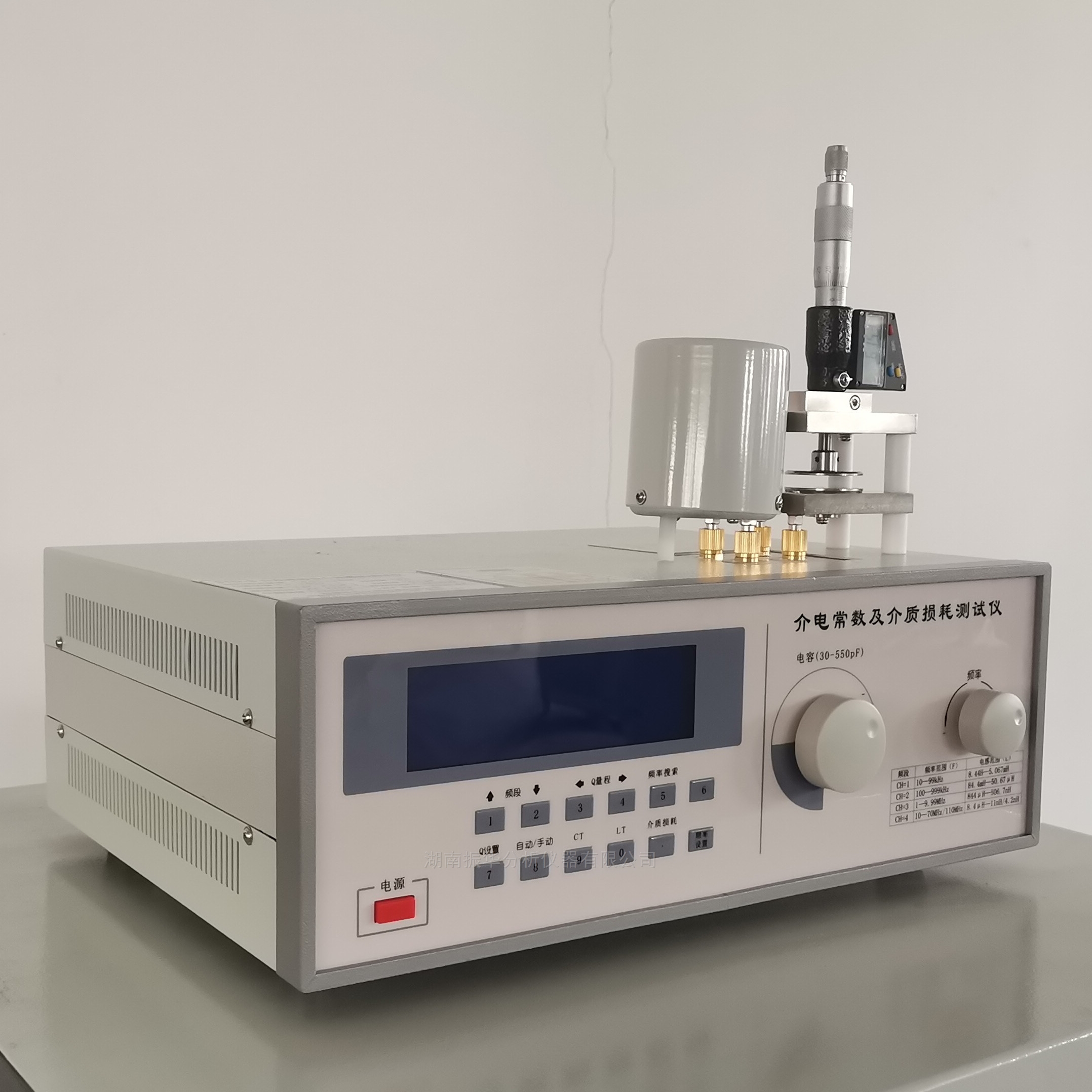

Dielectric Constant and Loss Tester

Electrical TestingSTD-B

Dielectric Constant and Loss Tester

The STD-B measures dielectric loss tangent (tanδ) and dielectric constant (ε) of insulating materials with a high-frequency Q meter and S916 fixture. The instrument references GB/T 1409-2006, GB/T 1693-2007, ASTM D150, and IEC 60250 and provides an optional liquid cup for liquid materials.
