Thermal Conductivity & Diffusivity instruments

Showing 34 of 172

Longitudinal Heat-Flow Thermal Conductivity Apparatus for Graphite and Carbon Materials
Thermal Conductivity & DiffusivityDRX-II-JH

Longitudinal Heat-Flow Thermal Conductivity Apparatus for Graphite and Carbon Materials

The DRX-II-JH longitudinal heat-flow apparatus measures the thermal conductivity of electrically conductive materials at elevated temperature by the longitudinal heat-flow method with direct electrical heating, passing current through the specimen. It covers room temperature to 1,000 °C and 0.035–40 W/(m·K) or 20–500 W/(m·K) depending on the specimen's electrical conductivity, for graphite and carbon materials, copper, stainless steel and other conductive metals.

View product
Pipe Insulation Thermal Conductivity Apparatus (Guarded Hot Pipe)
Thermal Conductivity & DiffusivityGHR-3K

Pipe Insulation Thermal Conductivity Apparatus (Guarded Hot Pipe)

The GHR-3K guarded hot pipe apparatus determines the steady-state heat transfer properties of pipe insulation, including thermal conductivity, by the guarded hot pipe method, heating a 200 mm metering section between two 150 mm guard sections, with reference to GB 10296-2008 and ISO/DIS 8497. It covers 0.001–2.5 W/(m·K) on pipe specimens of 41–89 mm inner diameter with 20–50 mm walls, for polymeric pipe insulation, rock wool, glass wool and other insulation pipe sections.

View product
Laser Flash Analyzer (LFA)
Thermal Conductivity & DiffusivityDRX-II-JG1200

Laser Flash Analyzer (LFA)

DRX-II-JG1200 is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. Furnace options reach 500 °C or 1,200 °C from room temperature for Ø12–20 mm specimens 0.1–10 mm thick, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

View product
Laser Flash Analyzer (LFA)
Thermal Conductivity & DiffusivityDRX-II-JG

Laser Flash Analyzer (LFA)

DRX-II-JG is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. It covers thermal diffusivities of 0.01–1,000 mm²/s on specimens 1–10 mm thick, loading 1, 3 or 6 at a time, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

View product
Laser Flash Analyzer (LFA)
Thermal Conductivity & DiffusivityDRX-II-JG20

Laser Flash Analyzer (LFA)

DRX-II-JG20 is a laser flash analyzer (LFA) that measures thermal diffusivity from the rear-face temperature rise of a specimen after a laser pulse, determines specific heat capacity by comparison with a reference of known specific heat capacity, and calculates thermal conductivity from thermal diffusivity, density and specific heat capacity. Furnace options span −100 °C to 1,600 °C with a 20-position autosampler, for metals and alloys, ceramics, graphite and carbon fiber, and polymers.

View product
DRH-30S
Thermal Conductivity & DiffusivityDRH-30S

Heat Flow Meter (HFM)

DRH-30S is a heat flow meter that measures the thermal conductivity and thermal resistance of homogeneous plate specimens held between a hot plate and a cold plate, with automatic loading and thickness measurement for tests at different pressures. It covers 0.015–5 W/(m·K) in its low range and 3–500 W/(m·K) in its high range, for insulation materials, plastics and rubber, glass and fibers, and building insulation coatings.

View product
Flat-Plate Heat Flow Meter
Thermal Conductivity & DiffusivityDRH-30S

Flat-Plate Heat Flow Meter

DRH-30S is a heat flow meter that measures the thermal conductivity and thermal resistance of homogeneous plate specimens held between a hot plate and a cold plate, with automatic loading and thickness measurement for tests at different pressures. It covers 0.015–5 W/(m·K) in its low range and 3–500 W/(m·K) in its high range, for insulation materials, plastics and rubber, glass and fibers, and building insulation coatings.

View product

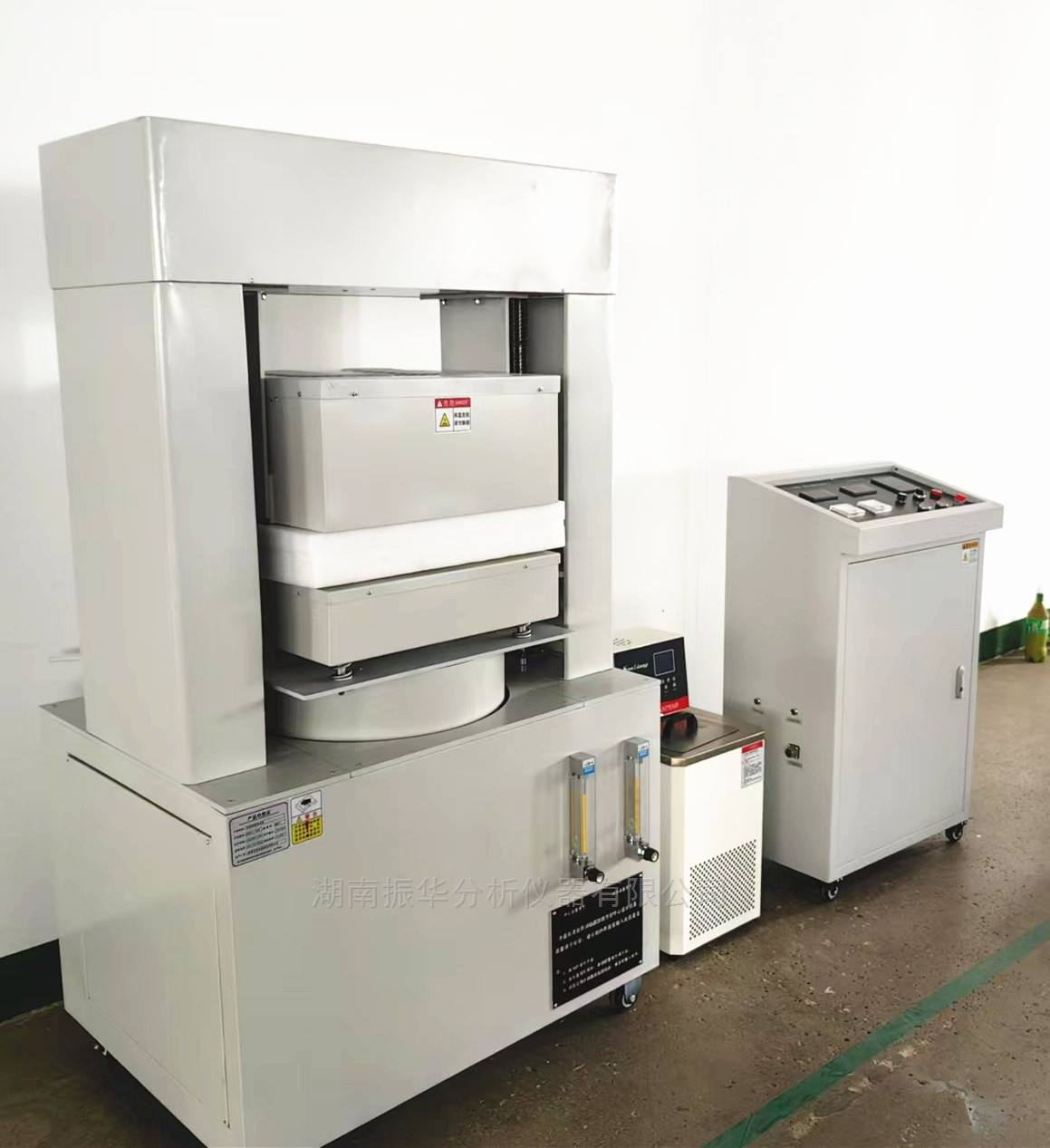

DRX-I-SPB High-Temperature Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-I-SPB

DRX-I-SPB High-Temperature Thermal Conductivity Tester

DRX-I-SPB is a high-temperature thermal-conductivity tester for refractory and ceramic-fiber products. It supports configured specimen assemblies with computer-assisted measurement and report output.

View product
Heat Flow Meter Thermal Conductivity Analyzer
Thermal Conductivity & DiffusivityDRX-II-RL

Heat Flow Meter Thermal Conductivity Analyzer

The instrument uses the heat flow meter method to measure thermal conductivity, with separate thermal-resistance and thermal-contact-resistance test modes. It accepts small specimens of polymers, ceramics, insulation, composites, glass, rubber, and other low- to medium-conductivity materials, including multilayer films.

View product
Guarded Hot Plate Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX

Guarded Hot Plate Thermal Conductivity Tester

The instrument uses the guarded hot plate method in GB 10294-2008 to measure thermal conductivity or thermal resistance in homogeneous board-shaped insulation materials. It uses a dual-specimen apparatus with computer-controlled measurement, direct cold-side cooling, and selectable specimen sizes for 30 A, 60 A, and 100 A configurations.

View product
DRX-II-PS Transient Plane Source Analyzer
Thermal Conductivity & DiffusivityDRX-II-PS

DRX-II-PS Transient Plane Source Analyzer

DRX-II-PS is a transient plane source analyzer that determines thermal conductivity by fitting a transient sensor response to the applicable analysis model. It covers 0.005–500 W/(m·K) from room temperature to 200 °C and supports solid, powder, coating, film, and liquid specimens, including anisotropic materials.

View product
Guarded Hot Plate Thermal Conductivity Analyzer
Thermal Conductivity & DiffusivityDRX-I-PB(PC)

Guarded Hot Plate Thermal Conductivity Analyzer

The DRX-I-PB(PC) measures the thermal conductivity of plastics, glass, fibers, and foams by the guarded hot plate method. It is intended for material-testing, research, quality-control, and higher-education laboratories and can be configured with water-bath or DRX-I-PC heating and optional thermal-resistance or heat-flow-meter setups.

View product
DRX-II-JG Series Laser Flash Analyzer
Thermal Conductivity & DiffusivityDRX-II-JG

DRX-II-JG Series Laser Flash Analyzer

The DRX-II-JG series is a laser flash analyzer that determines thermal diffusivity from the rear-face temperature response to an energy pulse and can determine specific heat capacity by comparison with a reference of known specific heat capacity. Interchangeable furnace and specimen-fixture configurations support solid, liquid, melt, slag, powder, and film specimens; thermal conductivity is calculated from thermal diffusivity, density, and specific heat capacity.

View product
Heat Flow Meter Thermal Conductivity Analyzer
Thermal Conductivity & DiffusivityHDRX-II-RL

Heat Flow Meter Thermal Conductivity Analyzer

The instrument measures thermal conductivity and thermal resistance by a heat-flow-meter method across low- and high-conductivity ranges. It supports ceramics, glass, refractories, polymers, plastics, rubber, resins, insulation, and other materials with automatic pressure and thickness measurement.

View product
DRH300 Heat Flow Meter (HFM)
Thermal Conductivity & DiffusivityDRH300

DRH300 Heat Flow Meter (HFM)

DRH300 is a heat flow meter (HFM) for determining thermal conductivity and thermal resistance of insulation boards and other solid materials, using one heat-flow sensor on each plate. It covers 0.005–2.0 W/(m·K) thermal conductivity and 0.1–8.0 m²·K/W thermal resistance, with computer-controlled testing and reference to ASTM C518, ISO 8301, and GB/T 10295.

View product
DRX-II-300A Guarded Hot Plate Analyzer
Thermal Conductivity & DiffusivityDRX-II-300A

DRX-II-300A Guarded Hot Plate Analyzer

DRX-II-300A is a guarded hot plate analyzer that measures the thermal conductivity of solid insulation and construction materials by the guarded hot plate method. It is configured for board, fiber, foam, composite-panel, rubber, cement, powder, filler, and gypsum-board specimens, with a hot-plate setpoint from room temperature to 110 °C.

View product
XRC-II Thermal Conductivity Tester (Thermal-Pulse Method)
Thermal Conductivity & DiffusivityXRC-II

XRC-II Thermal Conductivity Tester (Thermal-Pulse Method)

The XRC-II uses the thermal-pulse method to calculate thermal conductivity of homogeneous plates, gels, powders, and granular materials under dry or moisture-conditioned states. It provides embedded or control-PC operation and report output.

View product
Heat Flow Meter Thermal Conductivity Analyzer
Thermal Conductivity & DiffusivityDRH-300C

Heat Flow Meter Thermal Conductivity Analyzer

The instrument uses two symmetrically arranged heat flow meters and the heat flow meter method (HFM) to measure thermal conductivity and thermal resistance of plate-shaped materials. It is intended for insulation materials, clay, sand, ceramics, and plastics, with reference to ASTM C518, ISO 8301, and GB/T 10295.

View product
Hot-Wire Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-I-RX

Hot-Wire Thermal Conductivity Tester

The DRX-I-RX uses hot-wire testing in cross and parallel configurations to measure thermal conductivity of shaped insulating refractory products, powders, and nonmetallic solids, and can be configured for specific heat capacity measurement. The instrument references GB 5990-86, GB/T 10297-1998, and GB/T 17106-1997; selectable maximum temperatures are 1,000 °C, 1,400 °C, and 1,600 °C.

View product
DRH-300 Guarded Hot Plate Analyzer
Thermal Conductivity & DiffusivityDRH-300

DRH-300 Guarded Hot Plate Analyzer

DRH-300 is a dual guarded hot plate thermal-conductivity tester for plate-shaped plastics, fibers, foams, insulation, and refractories. With an optional specimen frame, it can also test powder and paste materials under computer control.

View product
DRX-II-SPB High-Temperature Heat Flow Meter
Thermal Conductivity & DiffusivityDRX-II-SPB

DRX-II-SPB High-Temperature Heat Flow Meter

The instrument measures thermal conductivity of carbon-containing refractories, ceramic-fiber products, composites, insulating bricks and boards, and carbon felt by a heat-flow-meter method from 600 °C to 1,600 °C. It provides adjustable pressure, gas or vacuum operation, computer analysis.

View product
Carbon-Material Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-II-LUX

Carbon-Material Thermal Conductivity Tester

The DRX-II-LUX measures the thermal conductivity of carbon materials with a hot-plate and cold-plate system, with reference to ISO 12987-2000 and YS/T 63.3-2006. Its configuration includes controlled hot and cold plates, specimen preheating, temperature-difference measurement, optional pressure application, and a 5–20 minute measurement time.

View product
Carbon Material Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-II-LUX

Carbon Material Thermal Conductivity Tester

The instrument measures the thermal conductivity of carbon materials with a hot plate, cold plate, specimen preheater, and hot/cold-face temperature measurement system. It references ISO 12987-2000 and YS/T 63.3-2006 and accepts a Ø50 × 50 mm specimen with a 5–20 minute measurement time and power consumption no greater than 1.5 kW.

View product
Wall Heat-Transfer Coefficient Tester
Thermal Conductivity & DiffusivityDRX-I-BX

Wall Heat-Transfer Coefficient Tester

The DRX-I-BX uses the heat-box method to measure the heat-transfer coefficient of walls and building components, with a heated box simulating indoor conditions and the opposite side exposed to natural outdoor conditions. It maintains the heat-box temperature at least 8 K above the outdoor temperature and calculates the coefficient from balanced heat input and recorded data.

View product
DRX-I-SPB High-Temperature Plate Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-I-SPB

DRX-I-SPB High-Temperature Plate Thermal Conductivity Tester

DRX-I-SPB is a high-temperature plate thermal conductivity tester for refractory materials and ceramic-fiber products. It supports hot-side or furnace temperatures of 200–1,300 °C and computer-controlled testing of insulating bricks, boards, and powders.

View product
Rubber Thermal Conductivity Tester
Thermal Conductivity & DiffusivityDRX-I-SX

Rubber Thermal Conductivity Tester

The instrument measures the thermal conductivity of vulcanized and unvulcanized rubber at room temperature using the transient hot-wire method. It is not intended for water-absorbing rubber or rubber containing metal powder and references GB 11205-89.

View product
Building Component Heat Transfer Analyzer
Thermal Conductivity & DiffusivityDRX-I-EX

Building Component Heat Transfer Analyzer

The DRX-I-EX uses the calibrated hot-box method and one-dimensional steady-state heat transfer to measure the heat-transfer performance, thermal resistance, and thermal conductivity of building-component specimens. It references GB 13475-1992 and uses controlled hot and cold boxes, temperature and surface measurements, and metering-box power.

View product
DRX-I-300C Thermal-Properties Tester
Thermal Conductivity & DiffusivityDRX-I-300C

DRX-I-300C Thermal-Properties Tester

The DRX-I-300C measures thermal properties of disturbed clay, sand, and similar soils, as well as solid powdered materials, with added methods for specific heat capacity and thermal conductivity. It is intended for construction engineering and soil-geology research under GB/T 50123-1999, with an optional freezing chamber for frozen-soil testing.

View product
Rock Thermal Conductivity Tester
Thermal Conductivity & DiffusivityHPA-300

Rock Thermal Conductivity Tester

The instrument measures thermal conductivity and thermal resistance by transient heat-flow and longitudinal heat-flow methods from 0.015–100 W/(m·K). It uses automatic loading, pressure control, computer acquisition, and a controlled cold end for specimens tested from room temperature to 300 °C.

View product
Thermal Conductivity Tester for Insulating Sheets
Thermal Conductivity & DiffusivityDRX-II-RW

Thermal Conductivity Tester for Insulating Sheets

The instrument uses longitudinal heat-flow technology to measure thermal conductivity from 0.5–100 W/(m·K). It is intended for solid, powder, coating, film, liquid, and anisotropic specimens, with a specific apparatus required for liquids.

View product
