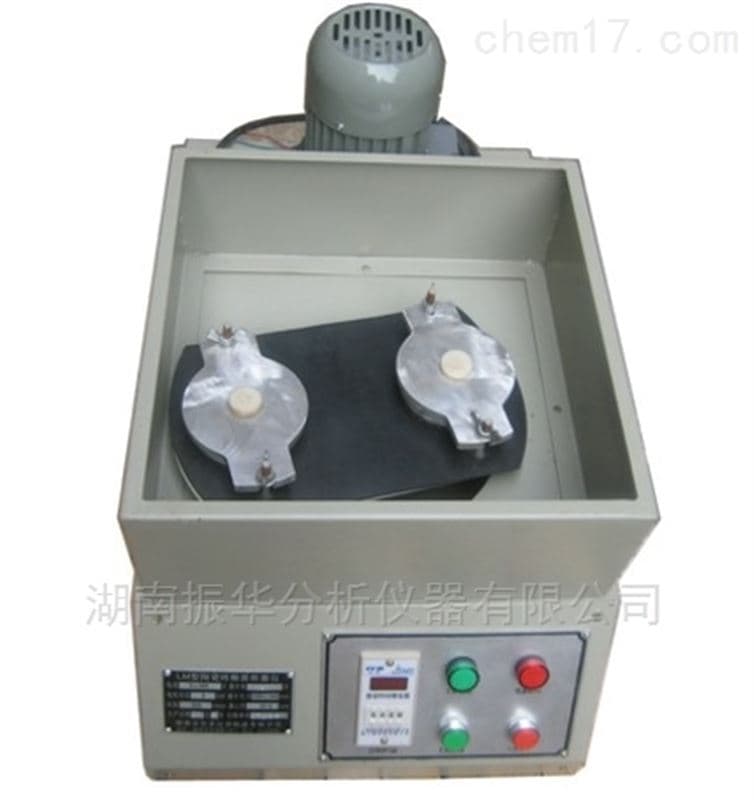

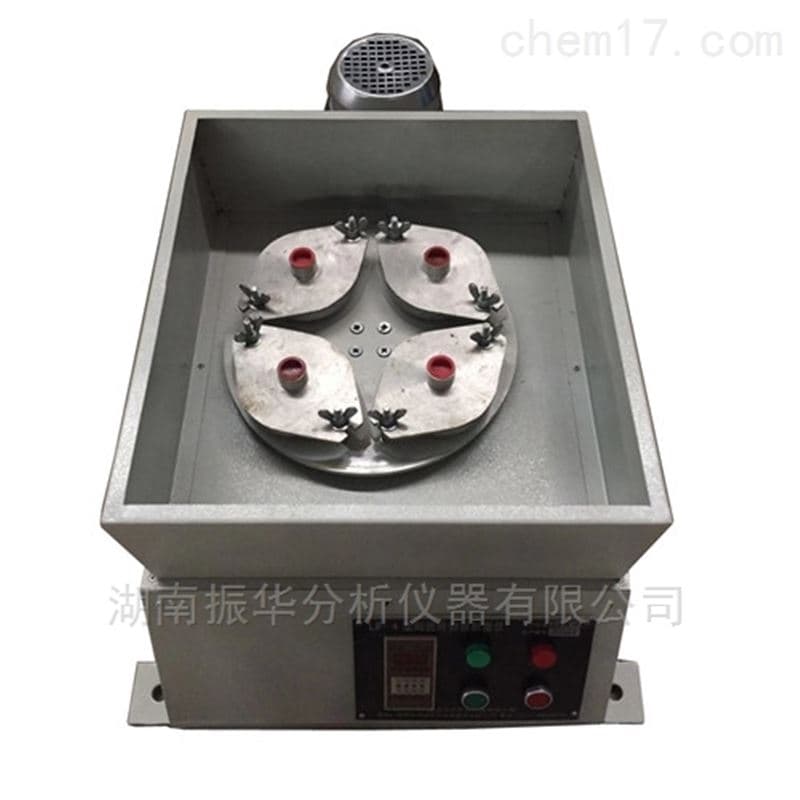

Glazed Ceramic Tile Wear Resistance Tester
The LM tests glazed ceramic-tile surface wear by grinding a measured abrasive charge on the glaze and visually classifying the worn appearance. It references ISO/DIS 10545-7 and GB/T 3810.7-2016 for wear classification and ISO 10545-14 for stain resistance.
- Model
- LM-2/4/8
- Category
- Ceramic & Tile Testing
Product description
Product Description
The instrument tests 2–8 specimens at the same time. Wear classes are assigned by comparing visible wear marks after the specified revolutions, with classes 0–5 and the stated revolution thresholds.
A fluorescent standard-light box is available for visual evaluation. The specifications cover specimen, fixture, turntable, motor, electrical, lighting, and enclosure dimensions.
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Referenced standards | ISO/DIS 10545-7; GB/T 3810.7-2016; ISO 10545-14 |
| Specimen size | 100 × 100 mm |
| Specimen capacity | 2–8 specimens |
| Wear-class revolutions | Class 0: 100; class 1: 150; class 2: 600; class 3: 750 and 1500; class 4: 2100, 6000, and 120000; class 5: >120000 and passes ISO 10545-14 stain resistance test |
| Turntable-center to specimen-center distance | 195 mm |
| Turntable speed | 300 ±10% rpm |
| Eccentricity | e = 22.5 mm |
| Metal fixture inner diameter | Ø83 mm |
| Fixture internal height | 25.5 mm |
| Motor power | 1.1 kW |
| Power supply | 380 V ±10%; 50 Hz ±10% |
| Standard-light color temperature | 6000–6,500 K |
| Illuminance | Approximately 300 lx |
| Light-box dimensions | 61 × 61 × 61 cm |
| Specimen evaluation | Visual comparison and classification |
