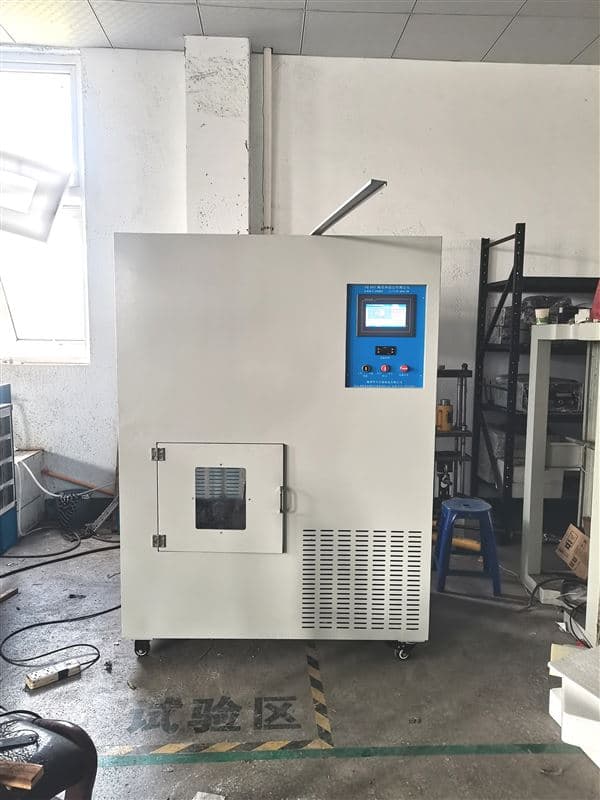

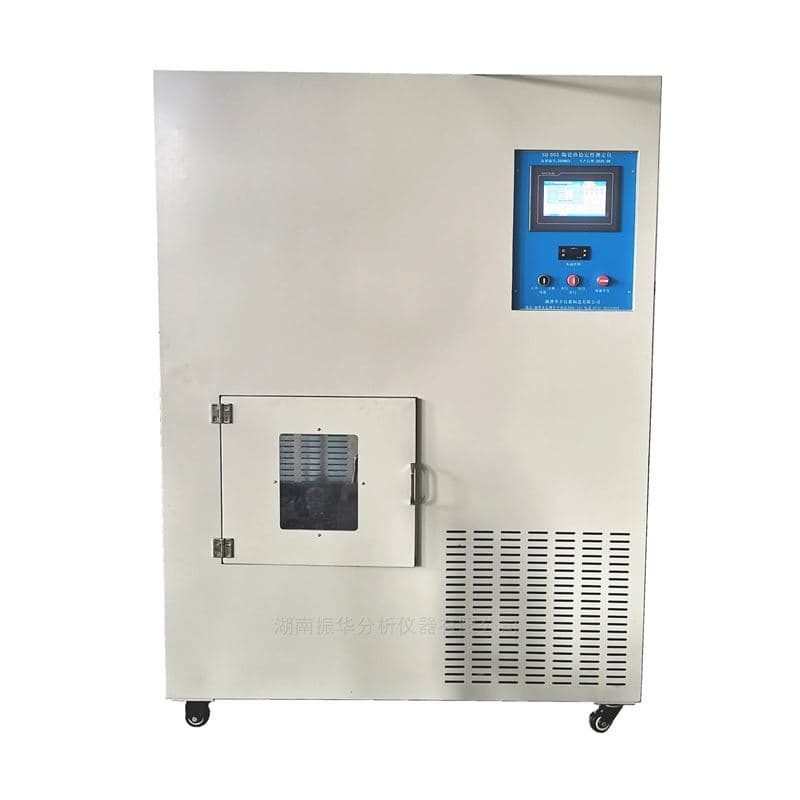

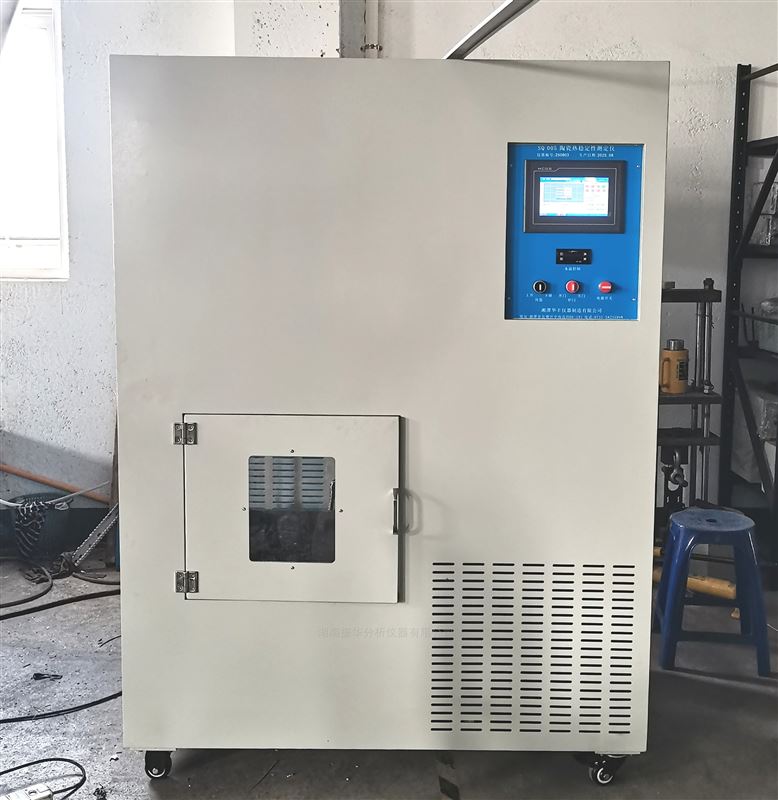

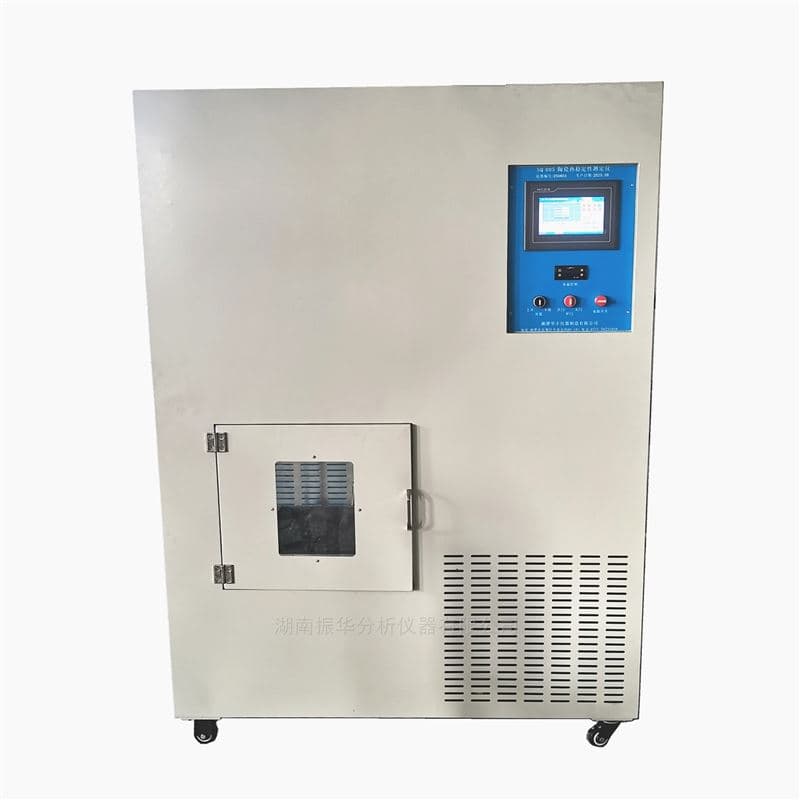

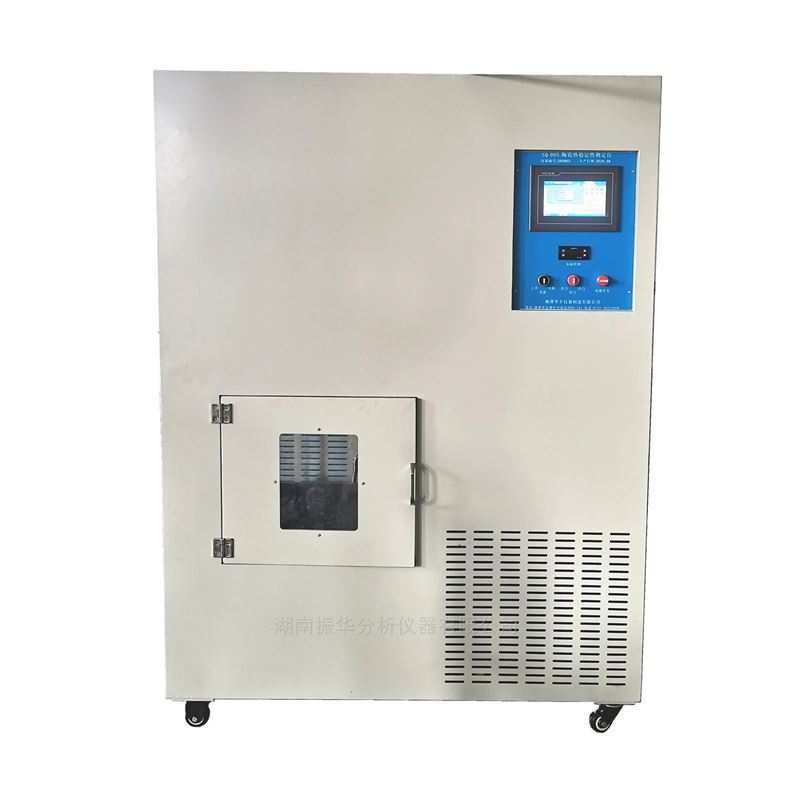

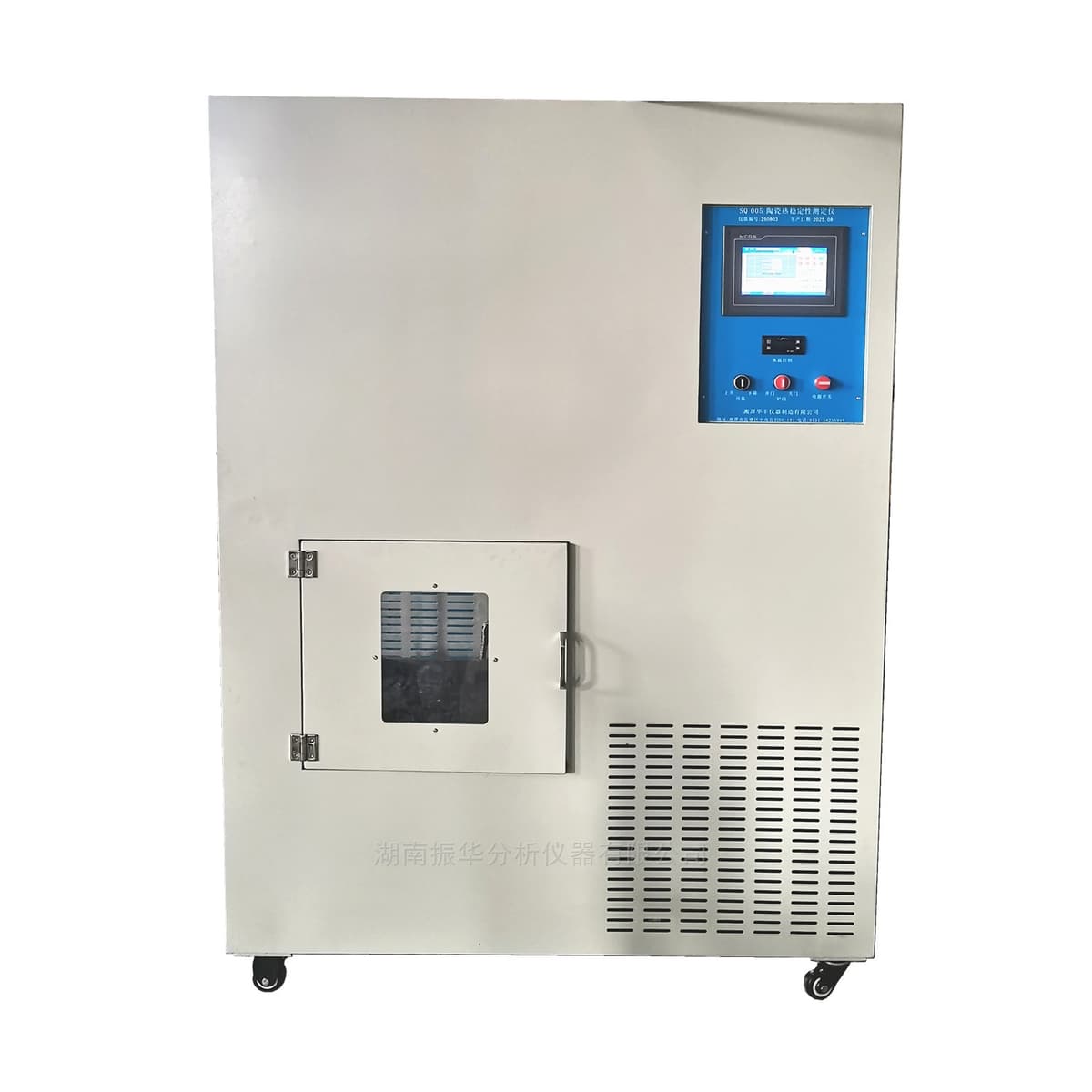

Thermal Shock and Stability Tester
SQ005 subjects ceramic products to 600 °C thermal-shock and stability cycles to programmed heating, cooling, and thermal-shock cycles. It is also used for glass, graphite, silicate products, and other nonmetallic materials.
- Model
- SQ005
- Category
- Thermal Shock
Product Description
The instrument subjects ceramic products and other silicate materials to programmable thermal-stability and thermal-shock cycles. The operator places the specimen in the material basket, selects the mode and parameters on the touchscreen, and starts the programmable PLC-controlled cycle; the cycle then runs automatically.
Ordering information: Specify the thermal-shock standard, furnace configuration, water-bath configuration, and cycle requirements when requesting a quotation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Furnace maximum working temperature | 600 °C |
| Temperature-uniformity difference | ±2 °C |
| Temperature-control accuracy | ±2 °C at 600 °C |
| Effective volume (material-basket dimensions) | 350 × 350 × 350 mm |
| Heating time | Adjustable, 0–999 min |
| Automatic cycle count | Adjustable, 0–999 |
| Water-bath temperature-control range | 10–50 °C |
| Cooling time | Adjustable, 0–999 min |
| Control system | Programmable PLC automation |
| User interface | Touch screen control for mode selection and parameter setting |
| Maximum water-bath heating power | 6 kW |
| Compressor electrical supply | 380 V |
| Compressor power | 2.2 kW |
| Referenced standards | GB 3298-2022; GB/T 4100-2015; GB/T 3810.9-2016 |
