DRX-II-SPB High-Temperature Heat Flow Meter
The instrument measures thermal conductivity of carbon-containing refractories, ceramic-fiber products, composites, insulating bricks and boards, and carbon felt by a heat-flow-meter method from 600 °C to 1,600 °C. It provides adjustable pressure, gas or vacuum operation, computer analysis.
- Model
- DRX-II-SPB
- Category
- Thermal Conductivity & Diffusivity
Product Description
The specimen is measured between a cold-side heat-flow sensor and the heated side. The test chamber accepts an atmosphere or vacuum, and the furnace is water-cooled. Automatic software can analyze each state point; manual testing is also available.
Ordering information: Specify the verified thermal-conductivity envelope, specimen diameter and thickness, pressure, atmosphere or vacuum package, heating element, cooling utilities, and electrical configuration when requesting a quotation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Referenced standards | GB/T 10295; GB/T 17911.8-2002; YB/T 4130-2005 |
| Temperature range | 600–1,600 °C |
| Pressure | 0–0.1 MPa, adjustable |
| Vacuum | ≤1,000 Pa |
| Cooling | Water cooling for furnace body; constant-temperature cooling tank |
| Software | Automated test-analysis software; control-PC connection |
| Laboratory humidity | <80% RH |

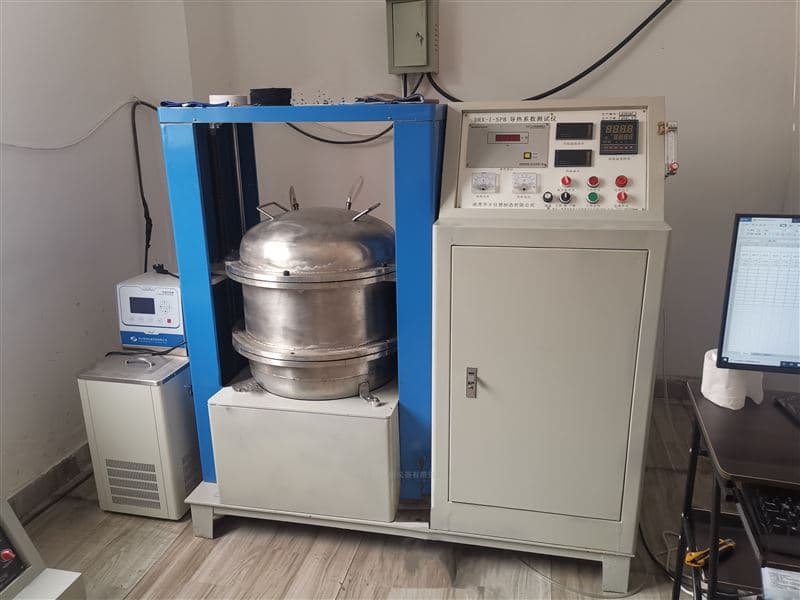

| Configuration | Tester; control cabinet/data collector; cooling tank; analysis software |
