Wall Heat-Transfer Coefficient Tester
The DRX-I-BX uses the heat-box method to measure the heat-transfer coefficient of walls and building components, with a heated box simulating indoor conditions and the opposite side exposed to natural outdoor conditions. It maintains the heat-box temperature at least 8 K above the outdoor temperature and calculates the coefficient from balanced heat input and recorded data.
- Model
- DRX-I-BX
- Category
- Thermal Conductivity & Diffusivity
Product Description

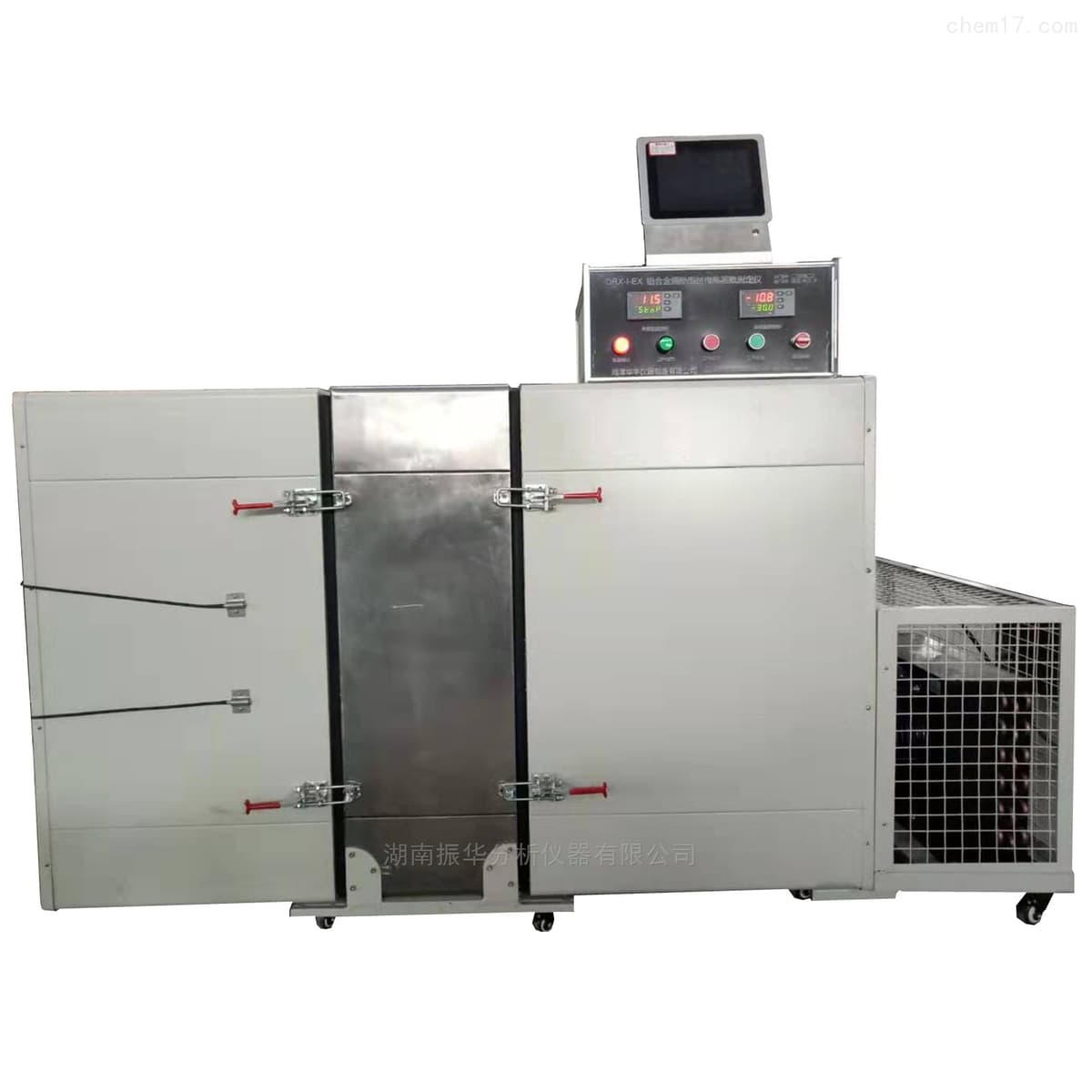

A heat box on the interior side simulates a heated indoor environment while the opposite side remains under natural outdoor conditions. At equilibrium, heat flows from indoors to outdoors and the heat-box heating input represents the transferred heat.
The heat box uses polystyrene-core sandwich color-coated steel panels and locking casters. Universal joints and a threaded locking mechanism connect the clamps. The system uses PID control, computer-controlled testing, automated analysis and report generation, and digital temperature sensors. Confirm the applicable temperature-accuracy basis, wall assembly, and test conditions for the configured system before ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Heat-box opening | 1000 × 1,000 mm |
| Heat-box depth | 400 mm |
| Heat-box heating power | 0–200 W |
| Temperature sensors | Six digital sensors for indoor, outdoor, and heat-box points |
| Digital temperature sensor accuracy | 0.0625 °C |
| Temperature measurement range | −30 to 80 °C |
| Overall temperature measurement accuracy | 0.1 °C |
| Heat-box control | PID self-tuning |
| Heat-box temperature-control accuracy | ±0.1 °C |
| Power measurement range | 0–200 W |
| Data-recording interval | 10 minutes |
| Calculation interval | Immediate calculation and display |
| Protection | Power-failure protection |
| Display | Point temperatures; K value; real-time and average power; real-time clock |
| Real-time clock accuracy | 1 minute/month |
| Controller operating temperature | 0–50 °C |
| Power supply | 220 V |
| Software | Automated testing and analysis; Windows XP (legacy platform; current support requires confirmation); Chinese-language interface |
Contact Us for Pricing
Interested in this product? Reach out for a personalized quote or more information and configuration guidance.
