Automatic Large-Format Ceramic Panel Flatness Tester
The DZY-1800 measures dimensions and shape characteristics of large-format ceramic panels, including center curvature, edge curvature, and flatness. It references GB/T 39156-2020, GB/T 3810.2-2016, and ISO 10545-2 and uses automatic laser measurement and computer reporting.
- Model
- DZY-1800
- Category
- Ceramic & Tile Testing
Product description
Product Description
The panel is placed once on the reference platform, after which the laser micrometer and XY motion system collect the shape data. The computer controls the test, displays results, and prints reports.

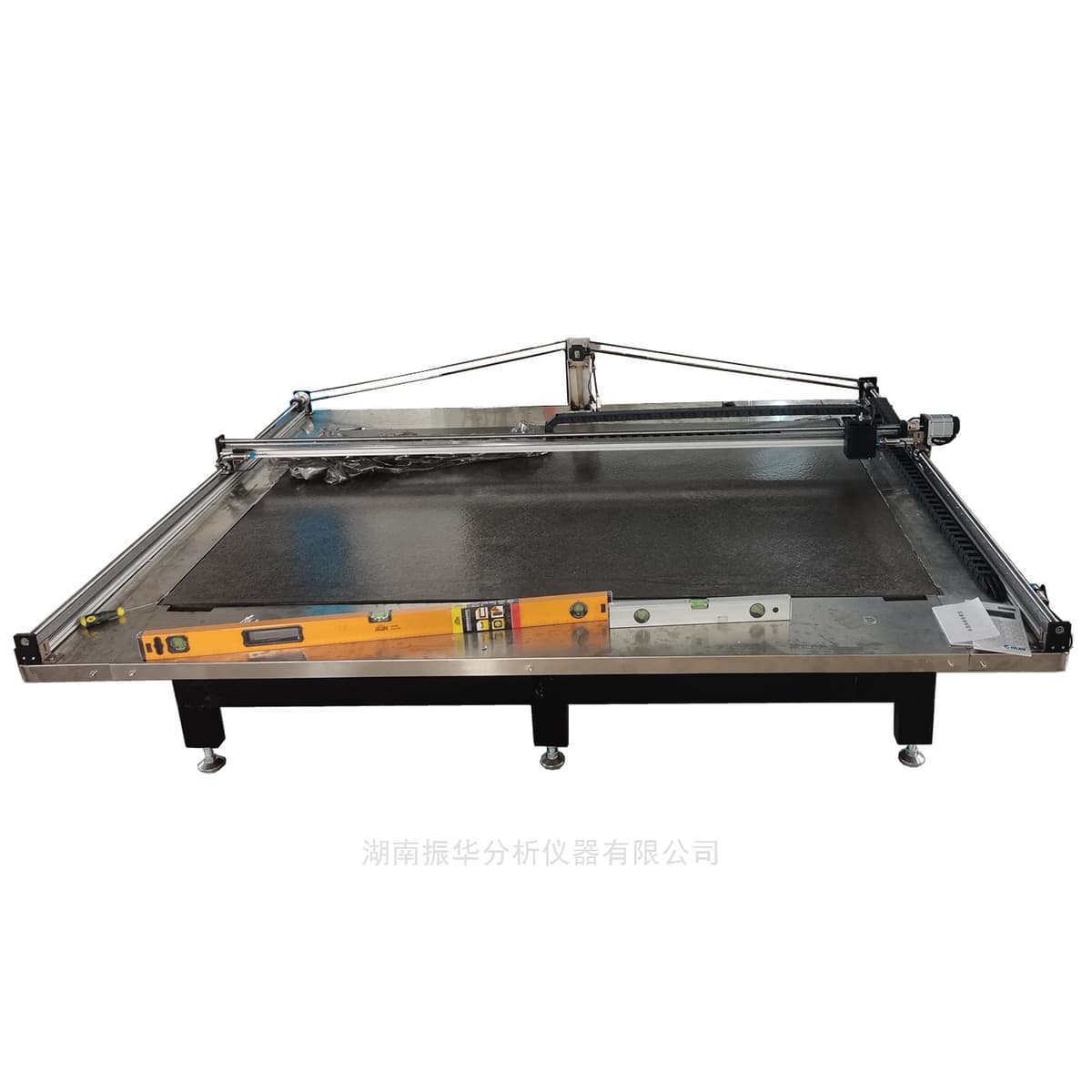

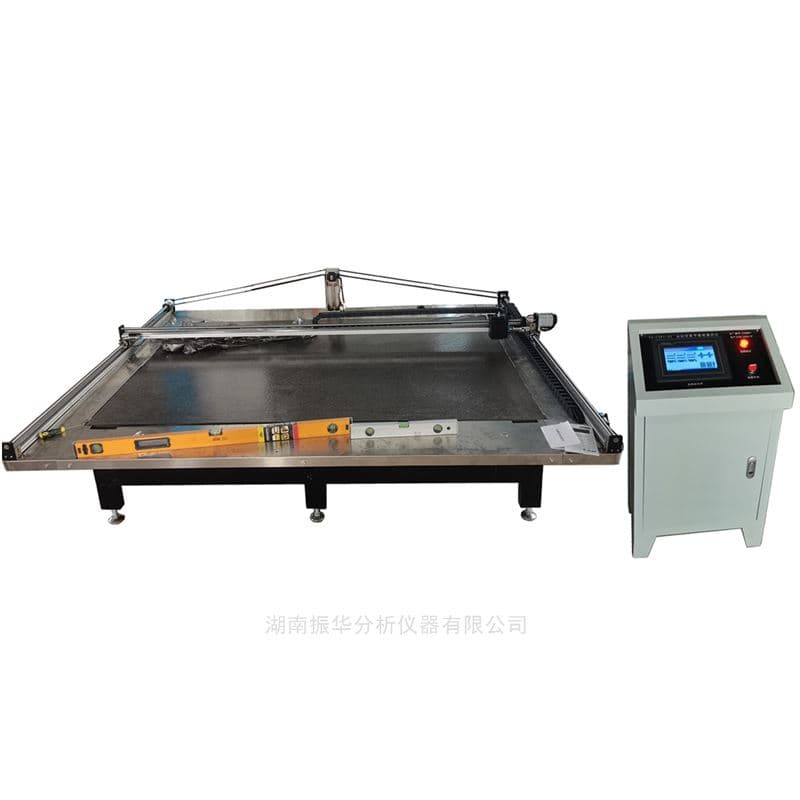

The measurement setup combines a laser micrometer, XY motion control, adjustable reference platform, USB computer interface, and automatic result reporting.
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Referenced standards | GB/T 39156-2020; GB/T 3810.2-2016; ISO 10545-2 |
| Measurement accuracy | ±0.1 mm |
| Panel measurement range | 600 × 600 mm to 1800 × 1,200 mm; custom sizes available |
| Laser micrometer | Included |
| Automatic step size | 1–20 mm/s |
| Reference platform | 2000 × 1400 × 800 mm; adjustable; spirit level |
| Control and output | Full computer control, display, and printed report |
| Interface | USB connection to computer |
| Motion | XY-axis movement control |
| Configuration | Reference platform; laser micrometer; control box; Lenovo computer; black-and-white laser printer; test-control software |
