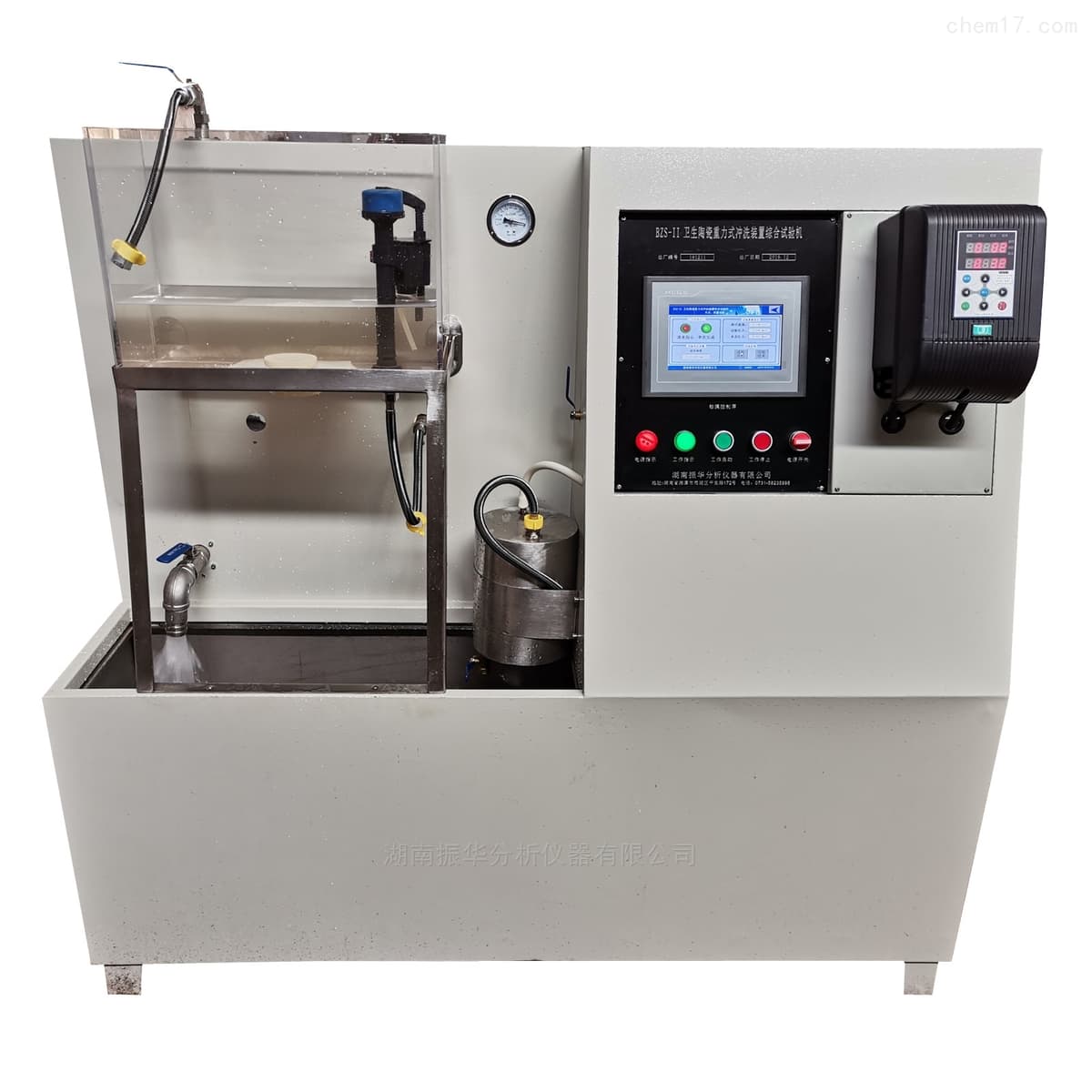

Sanitary-Ware Flush-Device Siphon, Water-Hammer, Flow, and Sealing Tester
The BZS-II tests siphon action, water hammer, flow, and sealing of gravity flush devices for sanitary ceramic ware and toilets. It references GB/T 26730-2011, ASSE 1002-2018, EN 14142-2018, EN 14055-2018, AS 172.2-2018, and ASME A112.18.1-2018.
- Model
- BZS-II
- Category
- Sanitary Ware & Plumbing Testing
Product Description
The system uses a touchscreen and three stations: water hammer; flow and sealing; and siphon. Water-hammer testing repeats five measurements and retains the maximum value; siphon testing uses a vacuum pump and a timed procedure.
The instrument also measures inlet and drain flow, observes leakage during flow and water-hammer testing, and uses variable-frequency pump control with a three-phase supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| Referenced standards | GB/T 26730-2011; ASSE 1002-2018; EN 14142-2018; EN 14055-2018; AS 172.2-2018; ASME A112.18.1-2018 |
| Power supply | AC 380 V; 50 Hz; A, B, C, N |
| Pump pressure | 0.03–1 MPa |
| Power | 6 kW |
| Flow range | 0.05–6 m³/h |
| Test stations | 3: water hammer; flow and sealing; siphon |
| Water-hammer repetitions | 5; retain maximum value |
| Control | Touchscreen; automatic operation |
| Siphon test | Vacuum-pump operation and timed test according to the standard |
| Flow testing | Inlet and drain flow measurement |
| Sealing test | Observe specimen for leakage during flow and water-hammer testing |
