Sanitary Ceramic Toilet Seat and Cover Life Tester

Published: 3/14/2025

Automated tester for the durability and functional life of toilet seats and covers driven by compressed air cylinders. Designed to comply with C/T 764 and JC/T 764 standards for opening/closing, soft-close, compression, impact, rocking, and static load tests.

Product Description

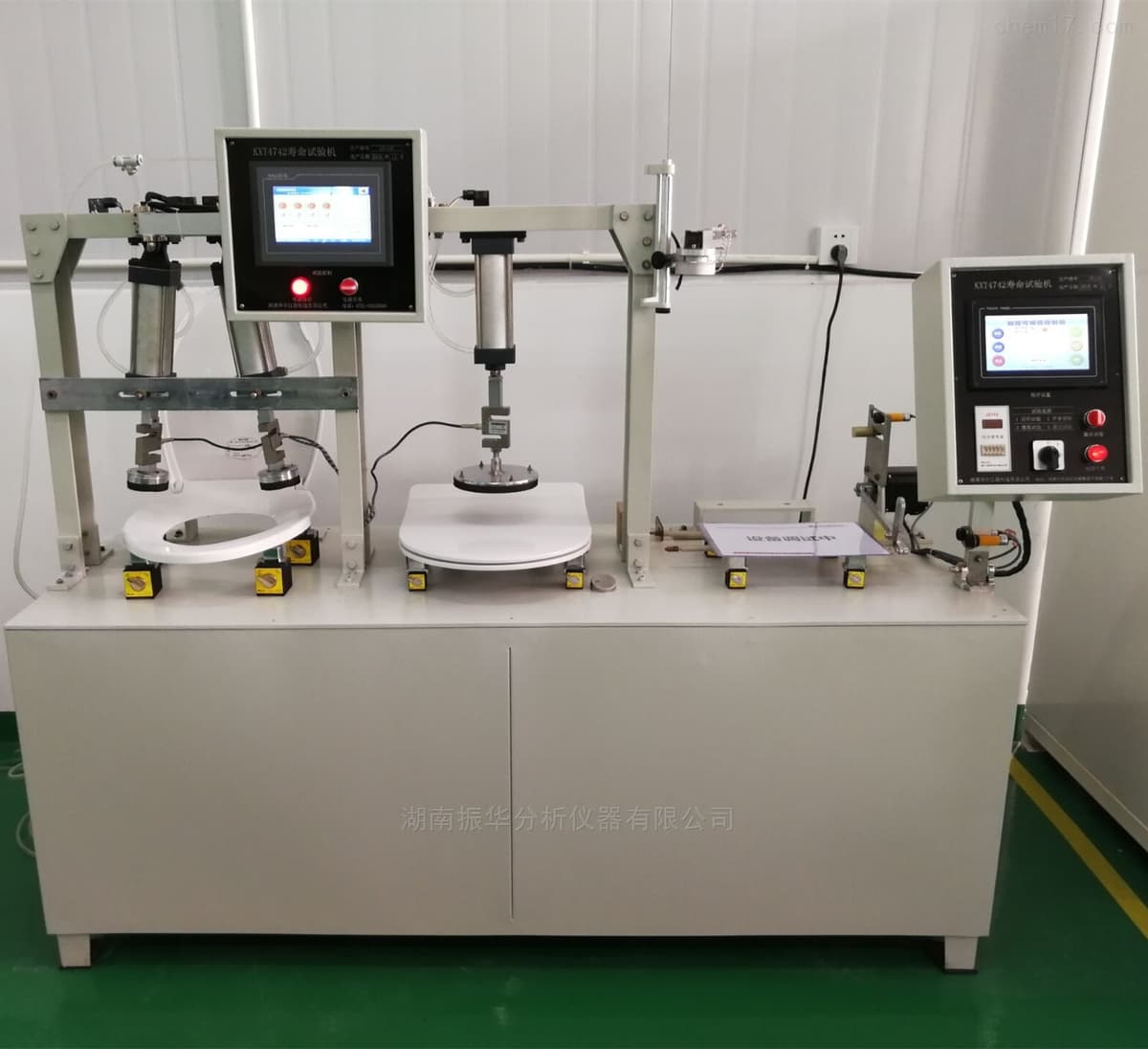

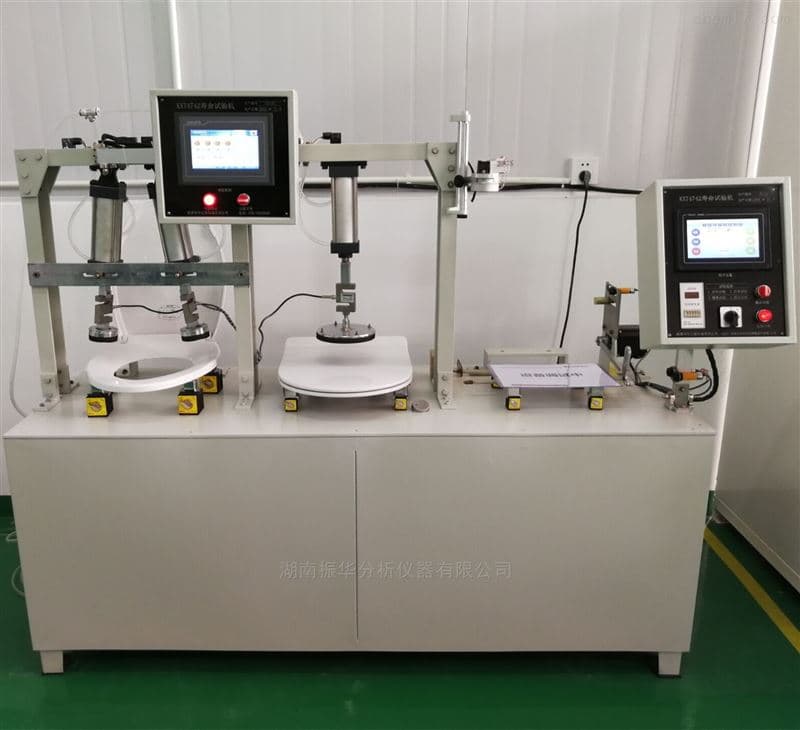

The KXT4742 is an automated life-testing system for sanitary toilet seats and covers, using compressed air to drive a cylinder piston that applies controlled loads and motions. It is engineered to meet the requirements of C/T 764 and JC/T 764 standards, offering stable loading, high measurement accuracy, and straightforward operation for repeatable durability assessment.

Typical applications include development, quality control, and certification testing of seat rings and lids. The system supports multiple test modes such as opening/closing cycles, soft-close life evaluation, high-force compression, impact resistance, rocking stability, and static load verification, with automated counting and configurable angles.

Technical Specifications

Parameter	Specification
Details	Power supply: AC220 V Power consumption: 1.0 kW Loading method: Compressed-air-driven cylinder piston Cylinder loading force: 0–2200 N adjustable Force accuracy: ≤5% Force resolution: 10 N Timing accuracy: <0.01 s Angle measurement accuracy: 0.5% Opening/soft-close/compression angle range: 0–100° adjustable Workstations: 3 (rocking: 1; static compression: 1; opening/impact: 1) Automatic counting: Supported, freely settable Applicable standards: C/T 764 (Toilet seat rings and covers); JC/T 764 (Toilet seat rings and covers) Test items: Opening/closing, soft-close life, compression, impact, rocking, static load

Parameter

Specification

Details

Power supply: AC220 V Power consumption: 1.0 kW Loading method: Compressed-air-driven cylinder piston Cylinder loading force: 0–2200 N adjustable Force accuracy: ≤5% Force resolution: 10 N Timing accuracy: <0.01 s Angle measurement accuracy: 0.5% Opening/soft-close/compression angle range: 0–100° adjustable Workstations: 3 (rocking: 1; static compression: 1; opening/impact: 1) Automatic counting: Supported, freely settable Applicable standards: C/T 764 (Toilet seat rings and covers); JC/T 764 (Toilet seat rings and covers) Test items: Opening/closing, soft-close life, compression, impact, rocking, static load
