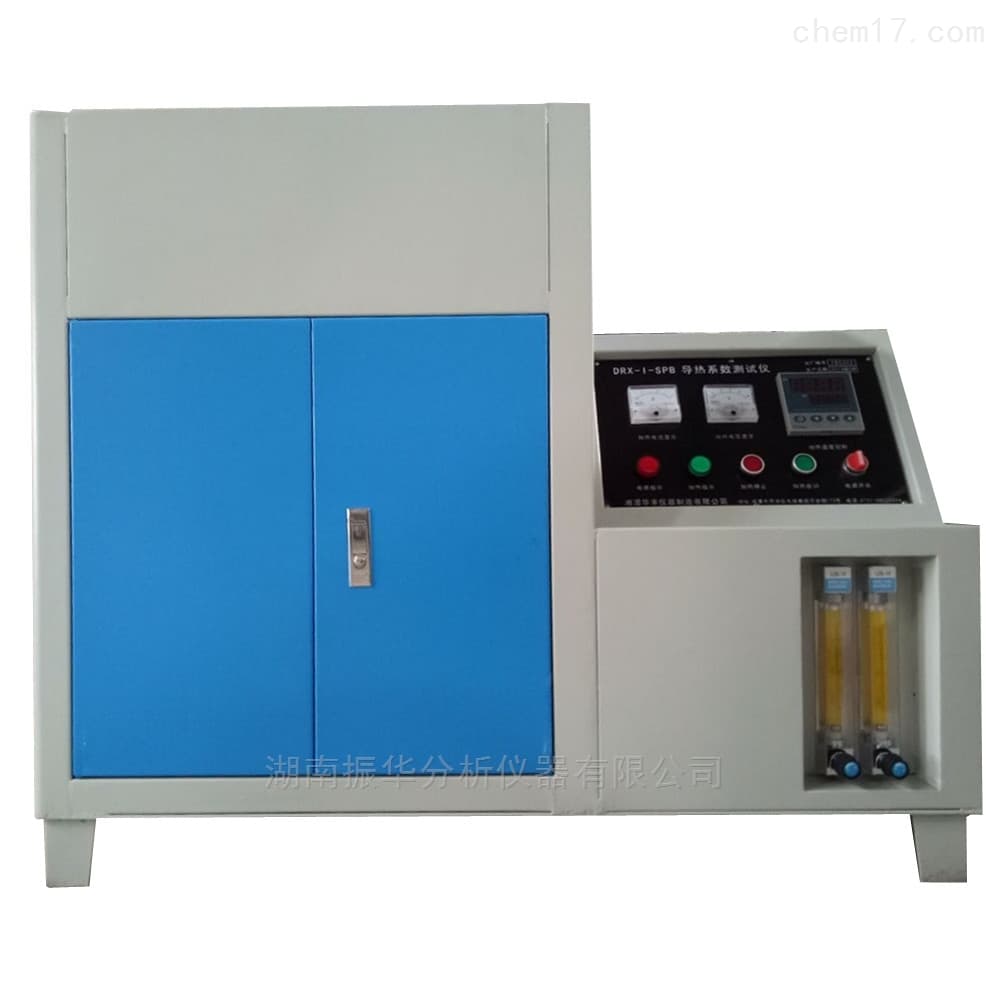

1,600 °C Refractory Thermal Conductivity Tester
The DRX-I-SPB-1600 uses a plate-method configuration with cold-side heat-flow sensing to measure thermal conductivity, with a hot-face/furnace temperature range of 600–1,600 °C and reference to GB/T 17911.8-2002 and YB/T 4130-2005. It is intended for refractory materials, refractory ceramic-fiber products, insulation bricks and boards, powders, and other low-conductivity refractory materials.
- Model
- DRX-I-SPB-1600
- Category
- Thermal Conductivity & Diffusivity
Product Description
The DRX-I-SPB-1600 uses a plate-method configuration with reference to GB/T 17911.8-2002 and YB/T 4130-2005. An embedded industrial computer provides automated testing and control, with automated analysis software for recording and printing test reports. The water-cooled test furnace supports gas filling and vacuum evacuation by configuration.
A heat-flow sensor measures cold-side heat flow. Atmosphere and vacuum capability are configuration-dependent. This page is a configuration overview; obtain a verified DRX-I-SPB-1600 datasheet defining thermal-conductivity accuracy and repeatability bases, pressure mode, and allowable gas/vacuum conditions before technical selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Hot-face/furnace temperature | 600–1,600 °C |
| Specimen size | 230 × 230 × (10–40) mm |
| Thermal conductivity range | 0.03–2 W/(m·K) |
| Test-chamber environment | Gas filling and vacuum evacuation; gas type, pressure mode, and allowable conditions are configuration-dependent |
| Cold-side heat-flow measurement | Heat-flow sensor |
| Cooling | Water-cooled furnace |
| Automation | Automated testing and analysis software |
| Standard configuration | Main unit; control cabinet/data-acquisition unit; cooling thermostatic tank; test software; vacuum pump; heat-flow sensor assembly; piping connection system; computer |
