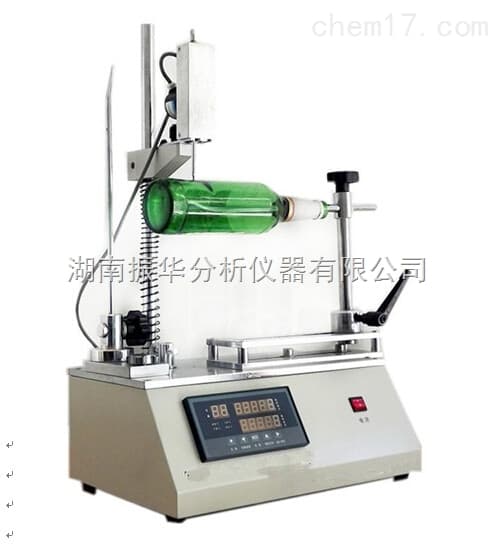

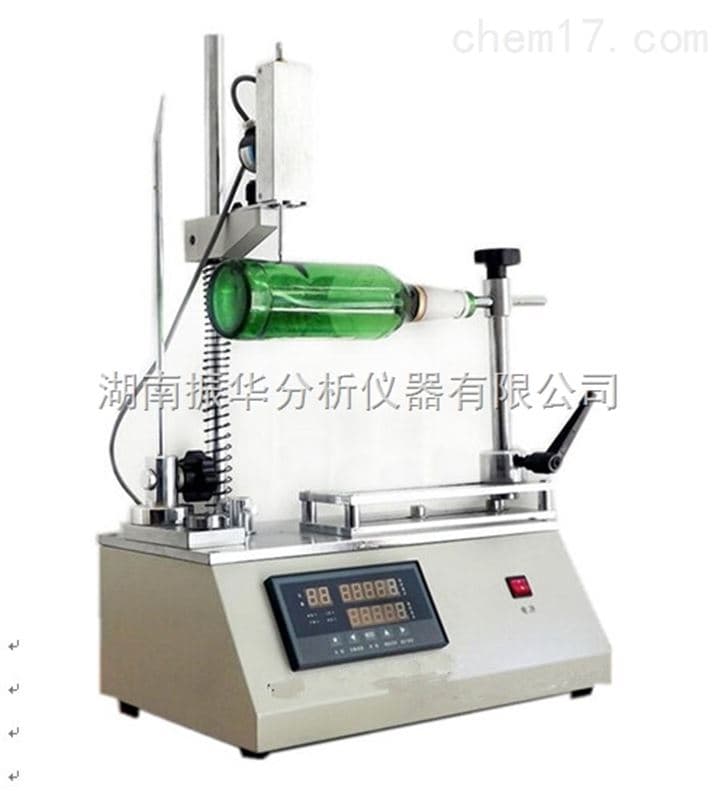

Digital Glass Base-and-Wall Thickness Gauge
The instrument measures the base and wall thickness of glass containers and bottles by digital display and encoded sensor measurement. It is specified for beer and beverage bottles, plastic bottles, and pharmaceutical ampoule, oral-liquid, antibiotic, and infusion bottles.
- Model
- DBL
- Category
- Glass Testing
Product Description
The single-coordinate gauge measures multiple points continuously along the full longitudinal or circumferential length by moving or rotating the bottle. Encoded sensors provide digital display and printer output.
Three digital windows display the count, force/displacement value, and force/displacement preset value. The gauge has a 150 mm measurement range and a test speed of 1–400 mm/min.
Technical Specifications
| Parameter | Specification |
|---|---|
| Indicated-value error | <0.1 mm; standard requirement |
| Digital display increment | 0.01 mm |
| Instrument range | 150 mm |
| Instrument dimensions | 800 × 400 × 200 mm |
| Instrument weight | Approximately 10 kg |
| Measurement increment | 0.001 mm |
| Test speed | 1–400 mm/min |
