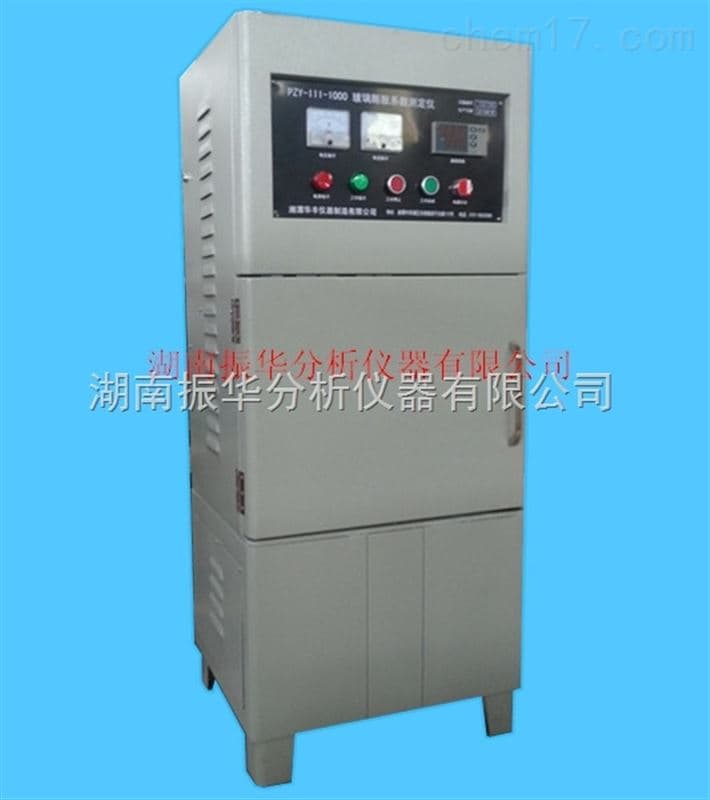

Glass Thermal Expansion Coefficient Tester (Vertical)

Published: 3/14/2025

The PZY-III-1000 is a vertical, automated instrument for precise measurement of the thermal expansion coefficient of glass. It supports configurable heating profiles, digital data acquisition, printing, and archival for laboratory and industrial R&D use.

Product Description

The PZY-III-1000 Glass Thermal Expansion Coefficient Tester measures dimensional change of glass specimens under controlled heating to determine the thermal expansion coefficient. The system integrates an intelligent furnace controller with PID regulation and PC-based software for parameter setup, run control, visualization, and data management.

Its vertical architecture supports single or dual push-rod configurations and accommodates solid or powder samples (with optional molds). A quartz sample holder ensures thermal stability, while a high-resolution displacement sensor captures micro-scale expansion changes across programmable heating rates.

Technical Specifications

Parameter	Specification
Details	Furnace temperature range: Ambient to 1000 ℃ Heating rate: 0.1–20 K/min, settable (typical ≤5 K/min; special requirements customizable) Control method: Intelligent instrument with PID; PC host enables on-screen parameter modification and locking Expansion measurement range: 5000 μm Expansion measurement accuracy: ±0.1% Temperature control accuracy: ±1 ℃ Recorded temperature value error: ≤±0.5% Configuration: Vertical; single or dual push-rod optional Displacement sensor resolution: ≤1/10000 mm Sample size: Length up to 50 mm; diameter 10–20 mm (max), special sizes customizable Sample state: Solid; powder with test mold Sample holder material: Quartz Main components: Test mainframe (1), test software (1 set), high-temperature furnace integrated in mainframe (1), computer and printer (user-supplied)

Parameter

Specification

Details

Furnace temperature range: Ambient to 1000 ℃ Heating rate: 0.1–20 K/min, settable (typical ≤5 K/min; special requirements customizable) Control method: Intelligent instrument with PID; PC host enables on-screen parameter modification and locking Expansion measurement range: 5000 μm Expansion measurement accuracy: ±0.1% Temperature control accuracy: ±1 ℃ Recorded temperature value error: ≤±0.5% Configuration: Vertical; single or dual push-rod optional Displacement sensor resolution: ≤1/10000 mm Sample size: Length up to 50 mm; diameter 10–20 mm (max), special sizes customizable Sample state: Solid; powder with test mold Sample holder material: Quartz Main components: Test mainframe (1), test software (1 set), high-temperature furnace integrated in mainframe (1), computer and printer (user-supplied)

Contact Us for Pricing

Interested in this product? Reach out for a personalized quote or more information. Our team will respond within 24 hours.
