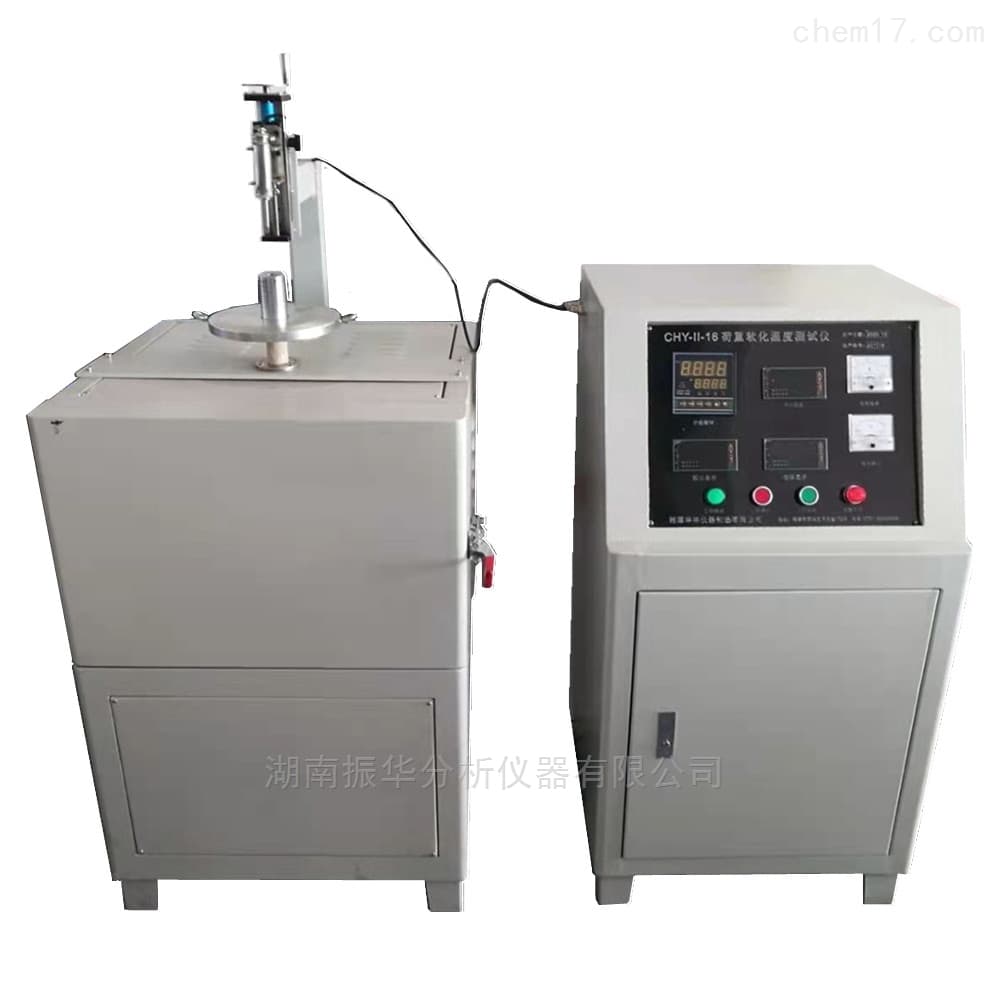

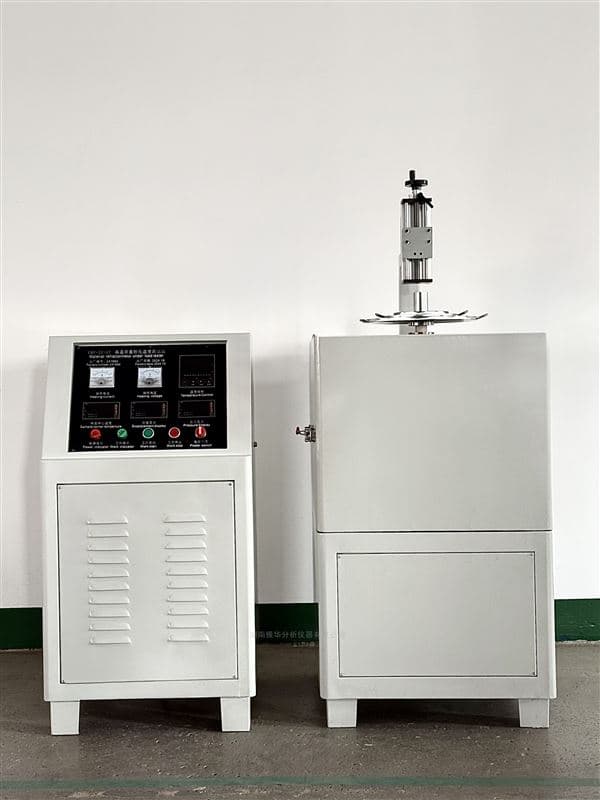

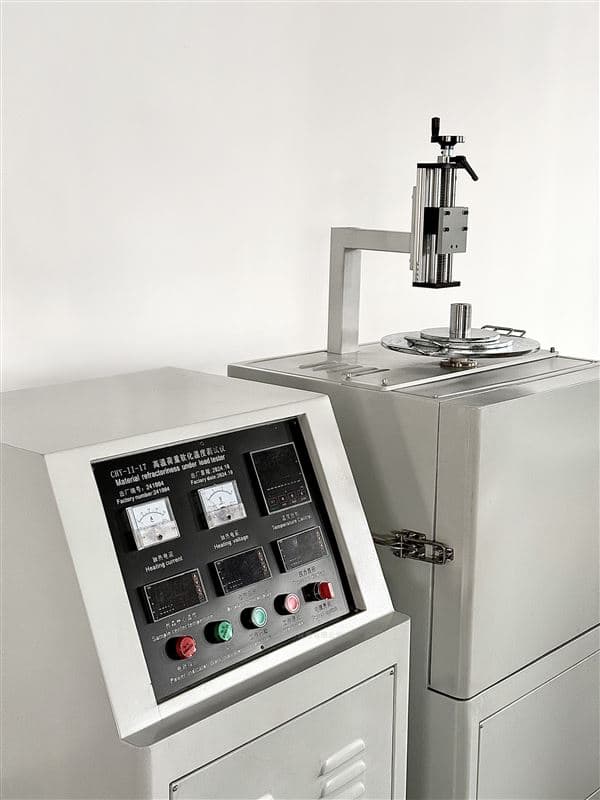

CHY-II-17/16 Refractoriness Under Load (RUL) Test System
The instrument measures refractoriness under load of ceramic, refractory, and graphite materials under elevated temperature and applied load. The instrument references YB/T 370, GB/T 5989, and ISO 1893:1989 and provides differential and non-differential test configurations.
- Model
- CHY-II-17/16
- Category
- Refractory Testing
Product Description
The instrument determines the refractoriness-under-load range of ceramic, refractory, and graphite materials. It is manufactured according to YB/T 370 and also cites GB/T 5989 and ISO 1893:1989; differential and non-differential methods are available.
The selectable furnace maximum temperature is 1,650 °C or 1,750 °C, with corresponding use temperatures of 1,600 °C or 1,700 °C. The instrument provides 0–10 mm deformation measurement with an error no greater than 0.03 mm, manual or automatic programming with at least 30 segments, selectable load pressure, and computer-connected control with automatic report printing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum heating temperature | 1,650 °C or 1,750 °C, selectable |
| Operating temperature | 1,600 °C or 1,700 °C, corresponding to the selected furnace maximum |
| Heating rate | 0–20 °C/min; lower endpoint 0 °C, programmable |
| Deformation measurement range | 0–10 mm |
| Measurement error | ≤0.03 mm |
| Sample dimensions | Height 50±0.5 mm; Diameter 36±0.15 mm or 50±0.35 mm |
| Uniform temperature zone height | ≥75 mm |
| Temperature differential | ≤20 °C |
| Maximum power | 3.5–6 kW |
| Applied pressure | 0.1 MPa; 0.2 MPa |
| Load range | 100–1,000 N, accurate to 1 N |
| Heating method | Open furnace body, easy upper and lower rod replacement |
| Connectivity | Computer interface for automation |
| Interface language | Chinese operation interface |
| Reporting | Automatic test report printing |
